PIR-2712-ES PIR Sensor (Energy Saving System)
PIR-2712 is a wall mount PIR Motions Sensors. It is designed to give a cost effective and reliable solution for residential, commercial security systems and the energy saving systems.
The sensors employs a low noise dual alarm element pryo-sensor and an MCU device in security logic and environment controls. The alternate polarity signal processor inside the MCU has very high rejection to noise due to radio interference or power surges. The MCU device also provides the funtions of digital pulse counting, power-up delay and alarm output timing and control.
Description
If more specification is needed, please contact APO directly.
This is the ES version. It has faster respond comparing to the standard version.
Operation Voltage: 12VDC
Operation Current: 15mA
Detection Method: Passive Infrared with Alternate Polarity Signal Processing

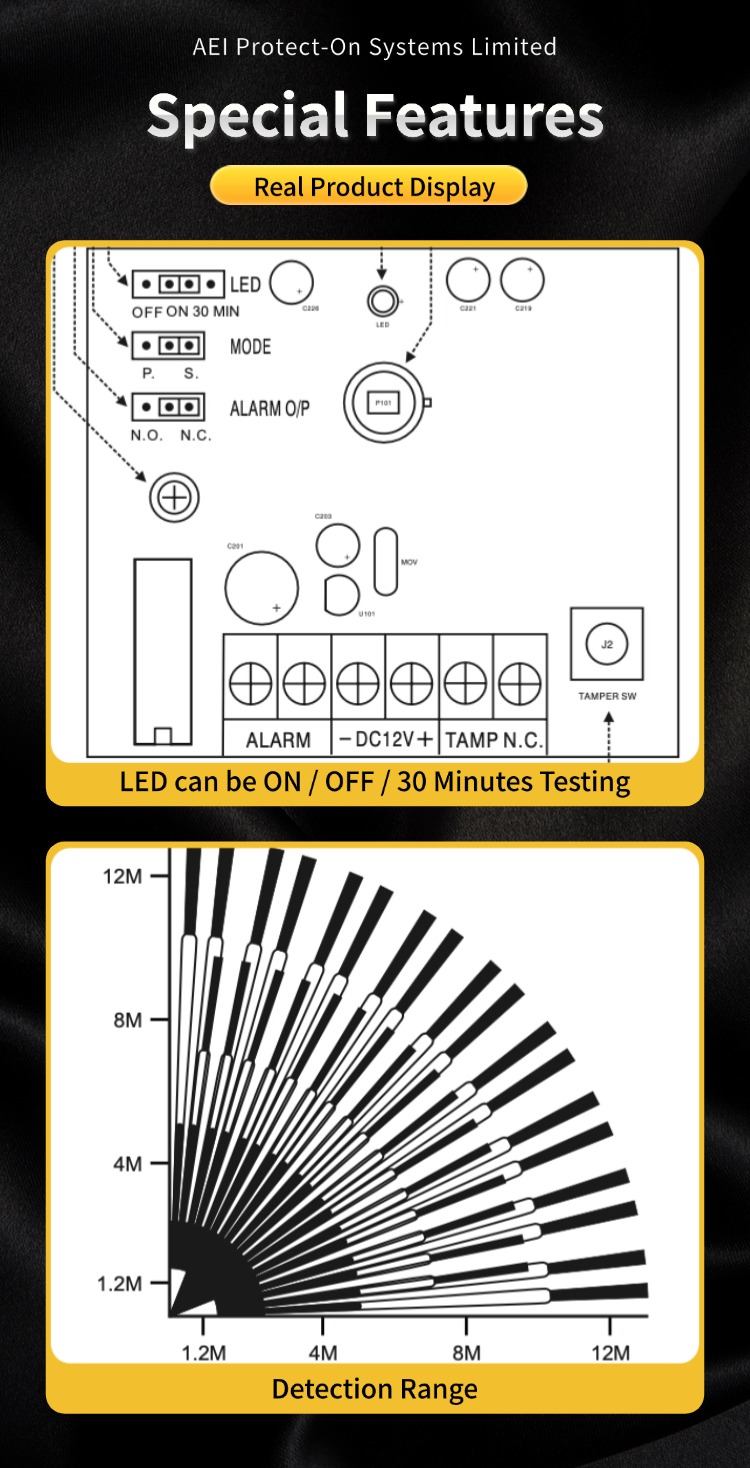

Detection Range: 12m max
Trigger Output Timer: 2 – 3 seconds
Pulse Count: 1 – 2 Pulse selection
Output Contact: NC NO Dry contact
Tamper Switch Contact: NC Dry contact 50mA/12VDC
Weatherproof: Nil
Operation Temperature: -10°C
Ambient Humidity: 5 – 95%

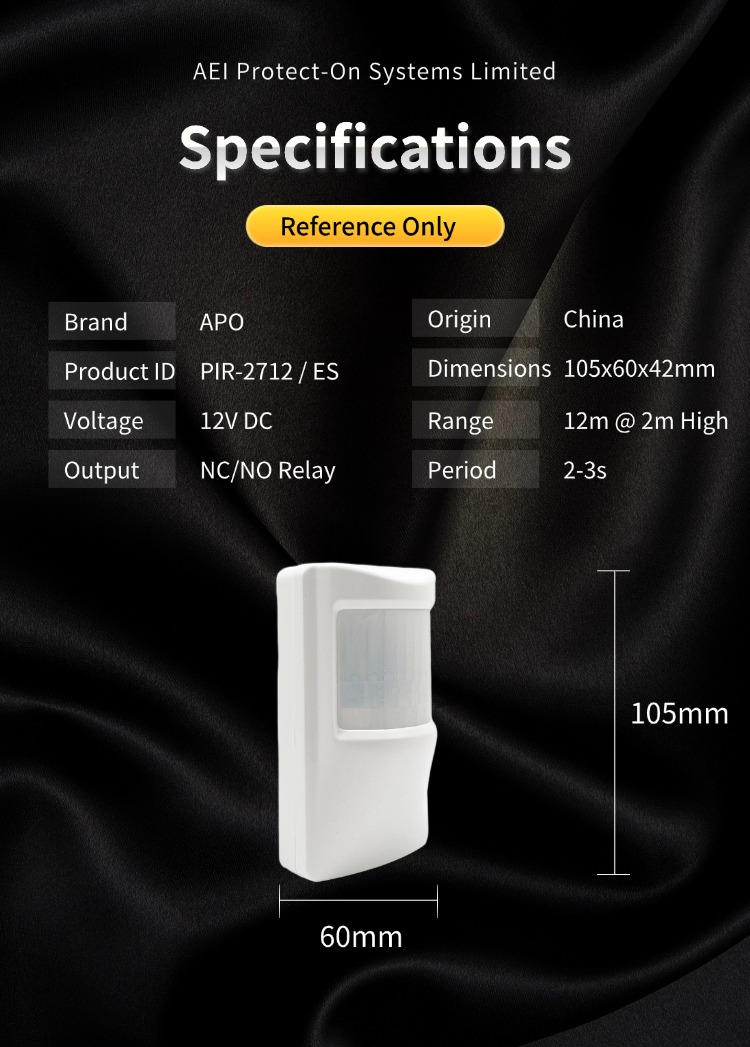

Dimensions: 105(H) x 60(W) x 42(D) mm
Purchase Link: Click to HKTVmall
