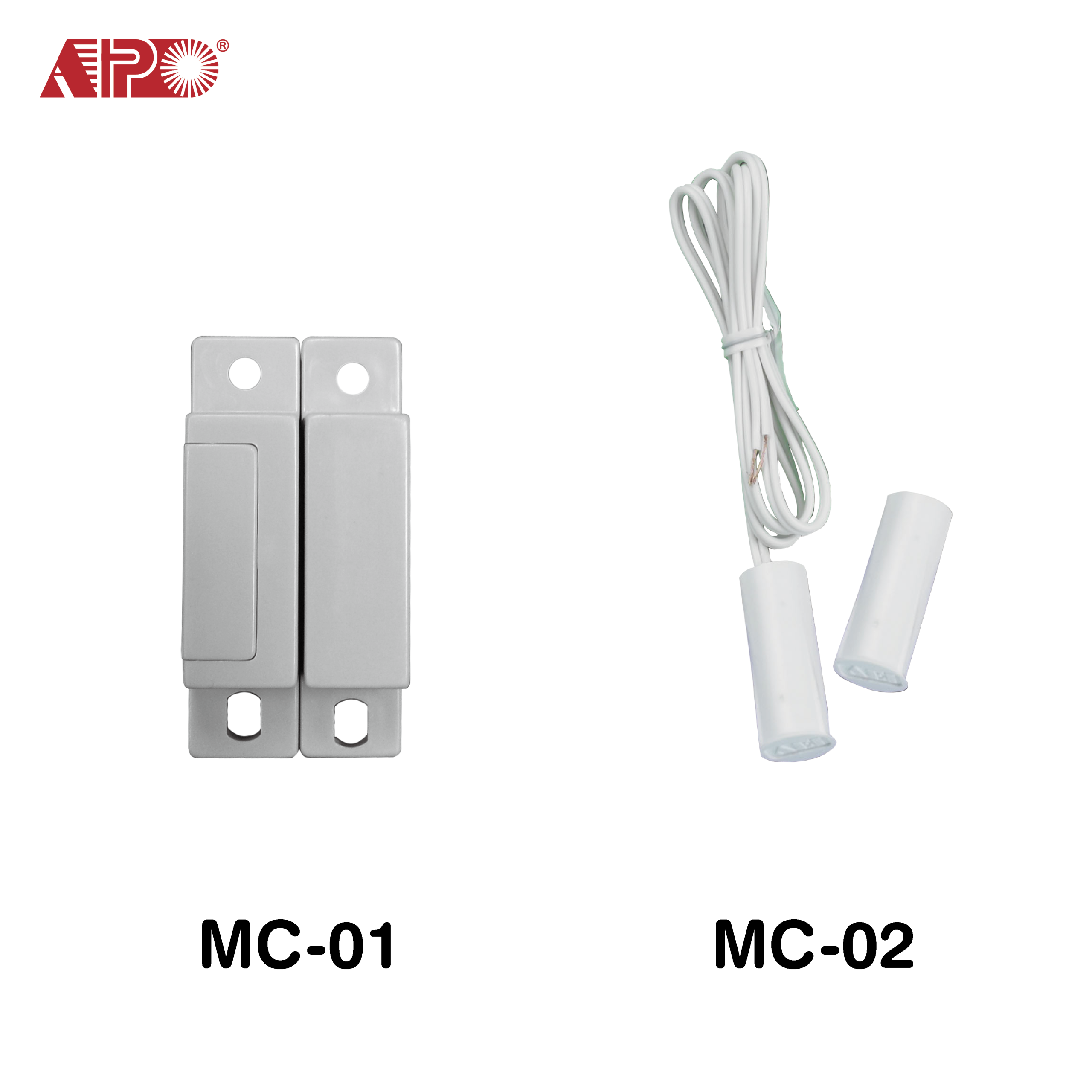

MC-01 / MC-02 Magnetic switch

Description

If more specification is needed, please contact APO directly.

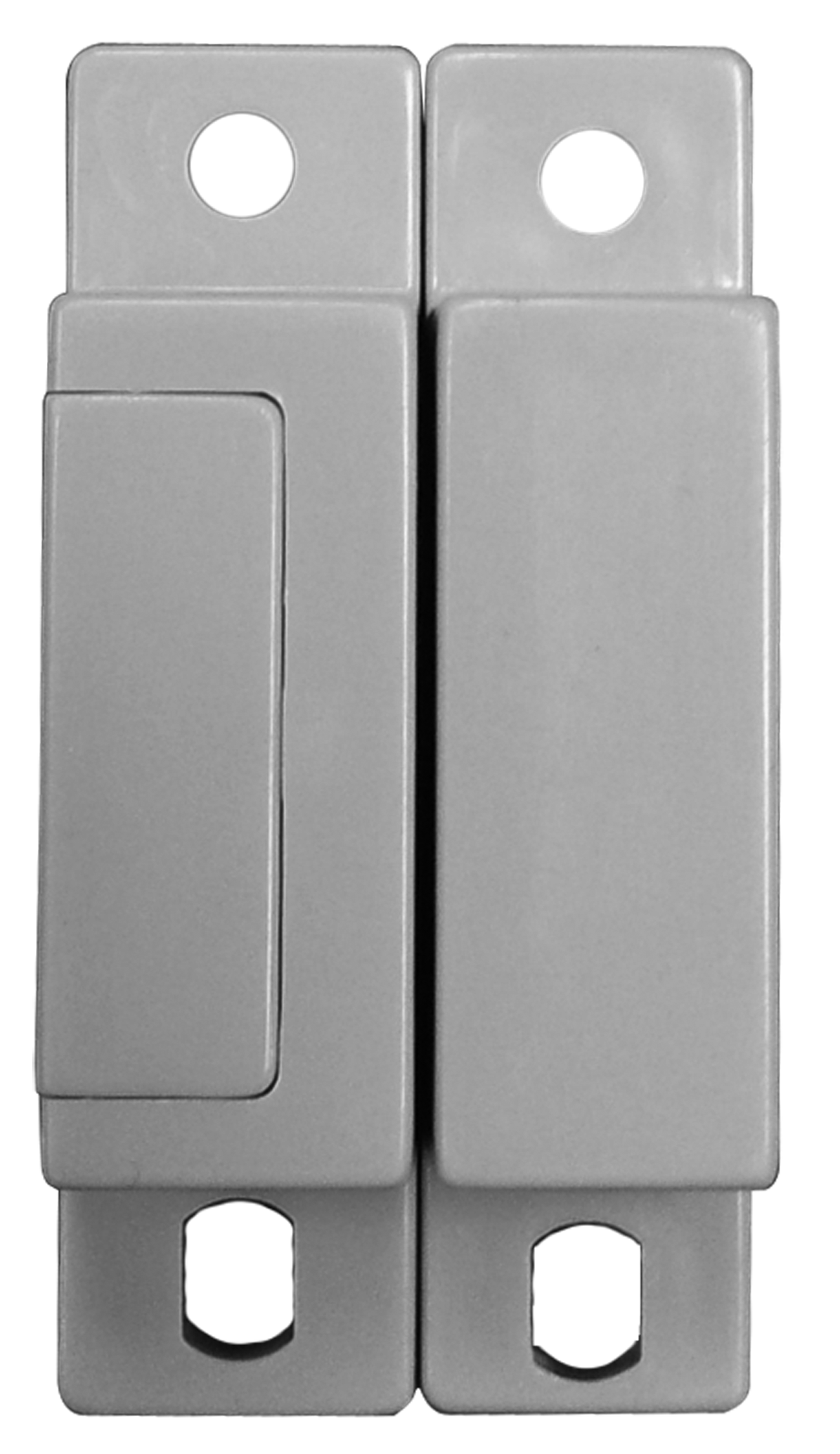

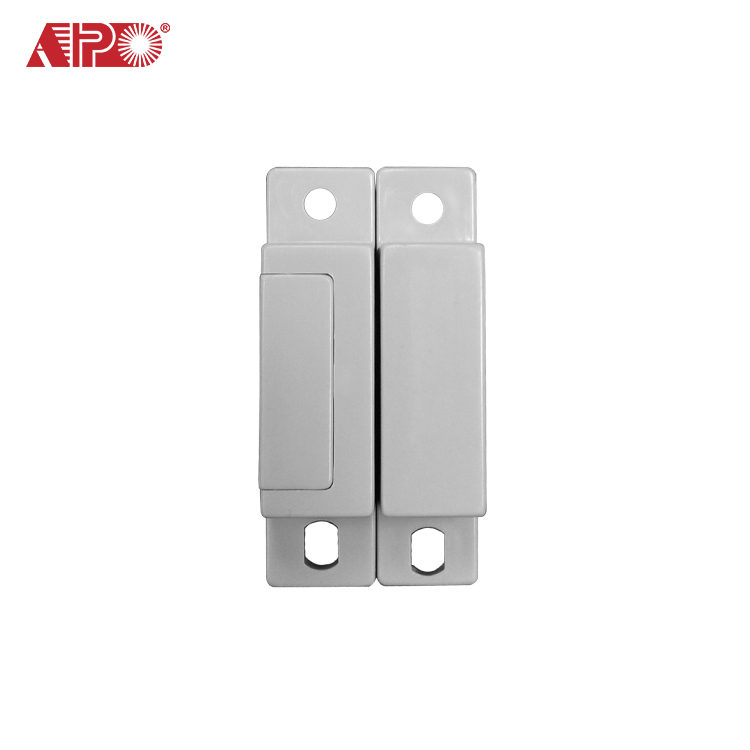

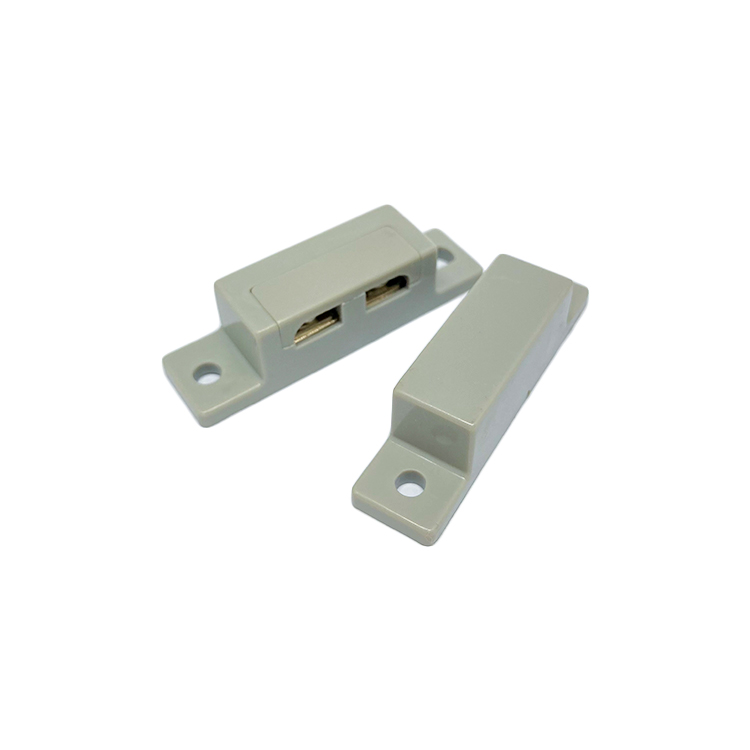

MC-01
N.C. Surface-Mounted Magnetic Contact for Alarm Systems

N.C. Circuit Contact at Normal Condition (door closed)
100mA, 35VDC Contact Rating
Wide Actuating Gap, 20 mm
Low Resistance Rhodium Contact
Color: Grey (Standard), White or Brown (on request)
Dimensions :
13.3 X 13 X 51mm (Switch);
12 X 13 X 51mm (Magnet)
Package: Bulk Pack or in Blister (on request)

Purchase Link: Click to HKTVmall

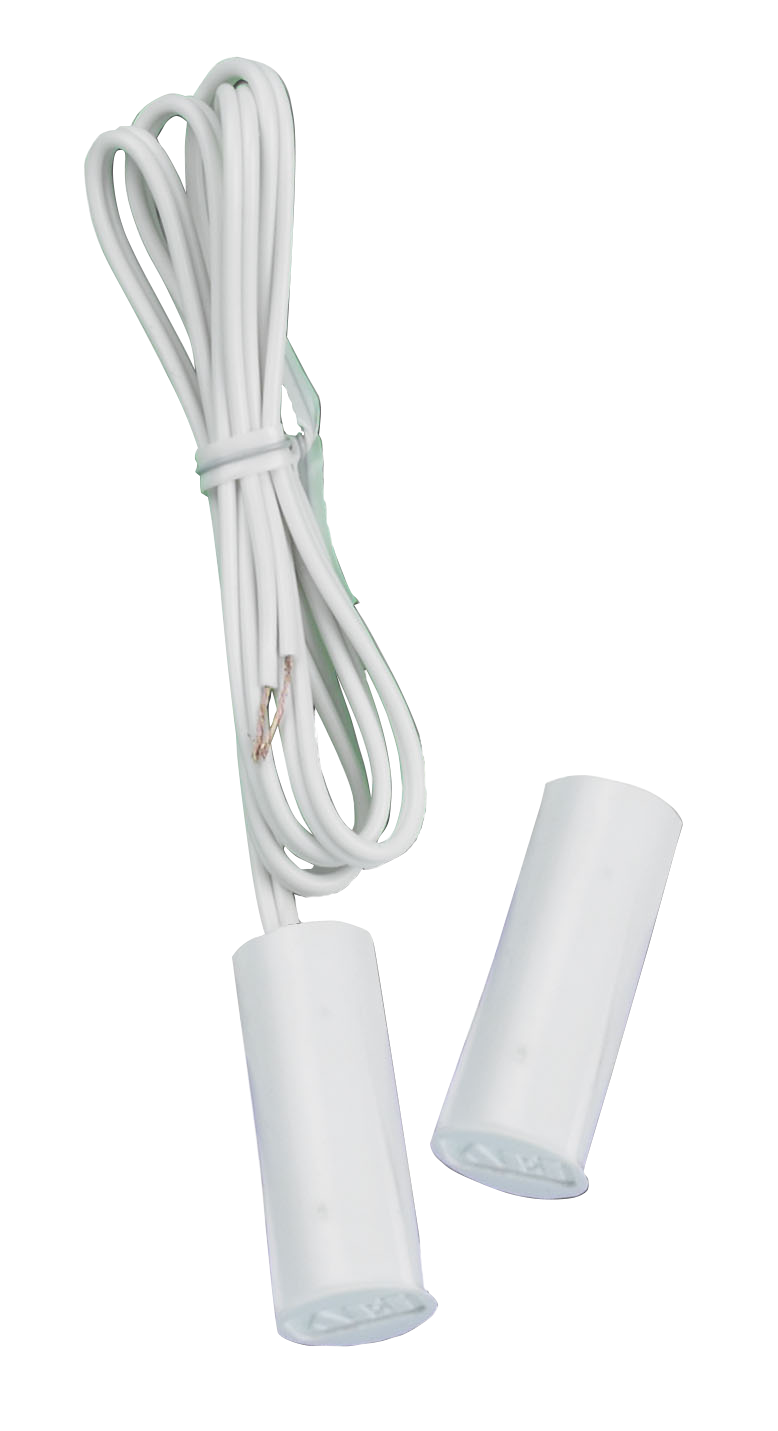

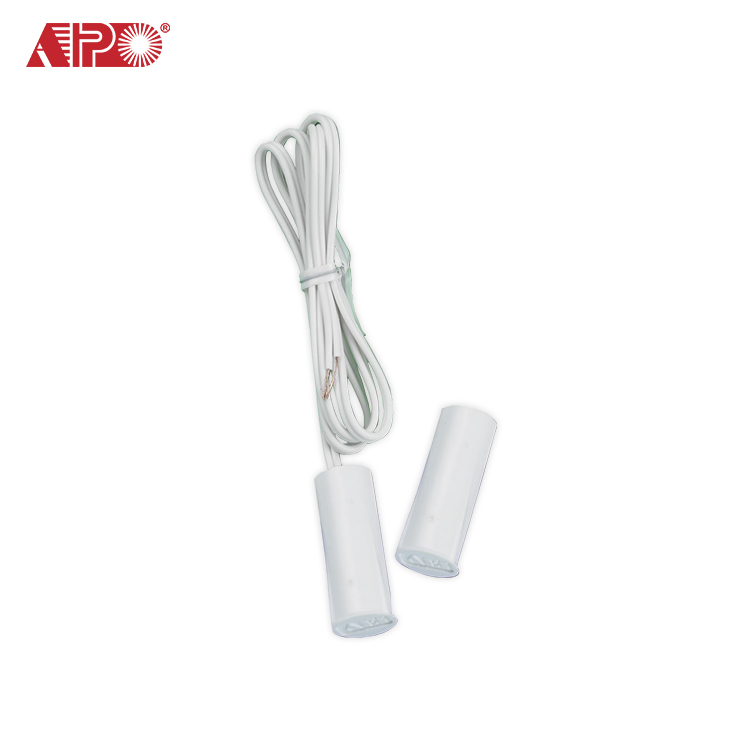

MC-02
N.C. Type Concealed Magnetic Contact for Alarm Systems

N.C. Circuit Contact at Normal Condition (door closed)
100mA, 35VDC Contact Rating
Wide Actuating Gap, 18mm (Make), 21mm (Break)
Low Resistance Rhodium Contact
Mounting Hole: 9.5mm Diameter
Body Height: 25mm
Lead Length: 60cm
Color: White (Standard), Grey or Brown (on request)
Package: Bulk Pack or in Blister (on request)

Purchase Link: Click to HKTVmall
