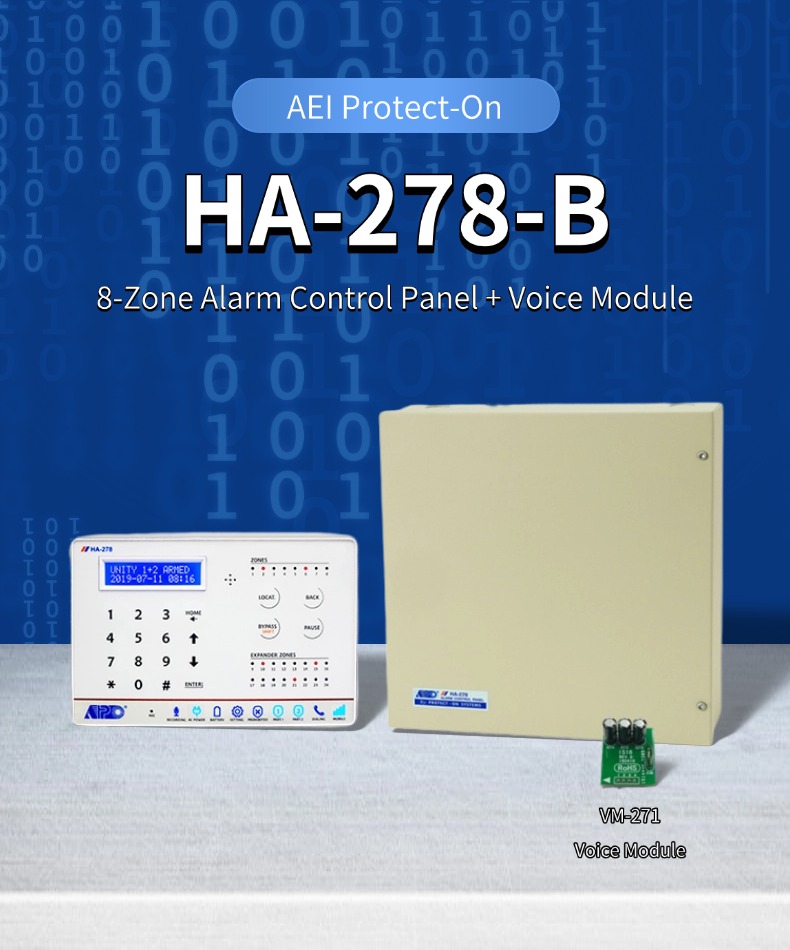

HA-278-B Alarm Panel with Voice Module
HA-278 is an 8-zone alarm control panel that comes with an Auto-dialer and Communicator. The dialer sends voice message / SMS to four preset telephones and the Communicator has two channels for sending alarm reports to two Standard Alarm Monitor Stations of Contact ID® format when alarm occurs. The Communicator is also fully compatible with Monitor Stations setting up with APO’s MS-270 Monitor Software on the PC platform.
The protection zones and the alarm output facilities are compatible with most of the sensors and output devices on the market. HA-278 is expandable to 24 zones; it is an ideal security system for business and residential protection.
Description
Operation Voltage: 16.5VAC or 24VDC
Operation Current: 90mA
Module: Build in Voice Module
Backup Battery: 6.5-7.0AH, 12V, Rechargeable Sealed Lead Acid
Protection Zone: 8 Zones in Standard, Expandable to 24 Zones
Zone Loop Response: Each Programmable for 25-750ms, 2-9 Pluse Count
Communication: PSTN & Mobile (Module Needed)
Communicator: Contact ID Alarm Monitor Station & APO MS-270 Alarm Monitoring Station
Auto Dialer: Voice Message & SMS for Alarm Reporting
Communicator Line: Two for Communicator, Four for Auto Dialer
Alarm Output: Four 12VDC for Siren, Strobe Light, Sensor & Keypad
Weatherproof: Nil
Operation Temperature: 0 – 65°C
Ambient Humidity: 5 – 95%

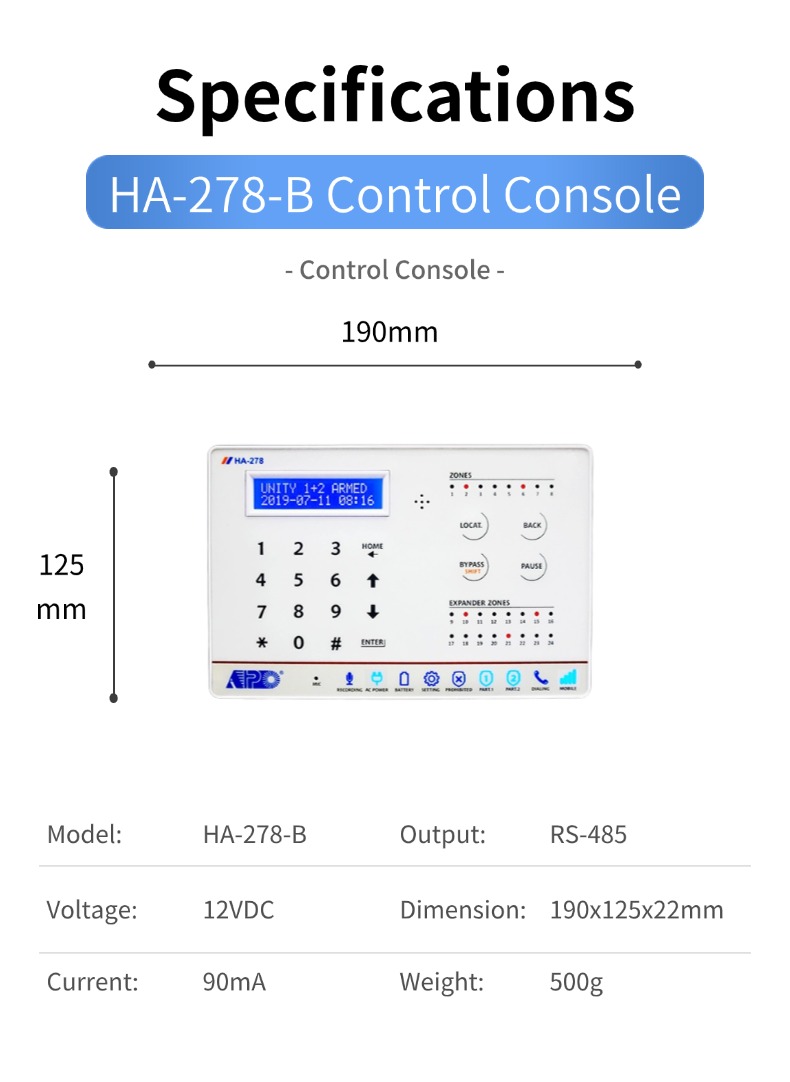

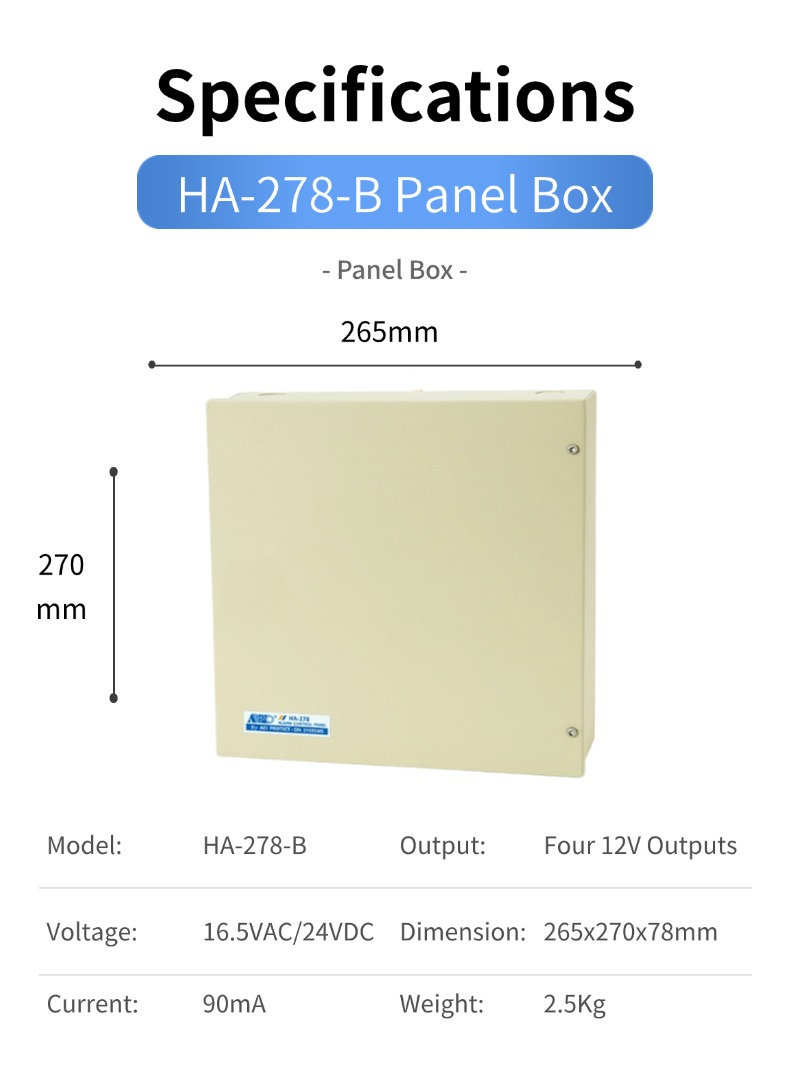

Dimensions: Master Unit 265(W) x 270(H) x 78(D) mm / Control Console 190(W) x 125(H) x 22(D) mm
Purchase Link: Click to HKTVmall
