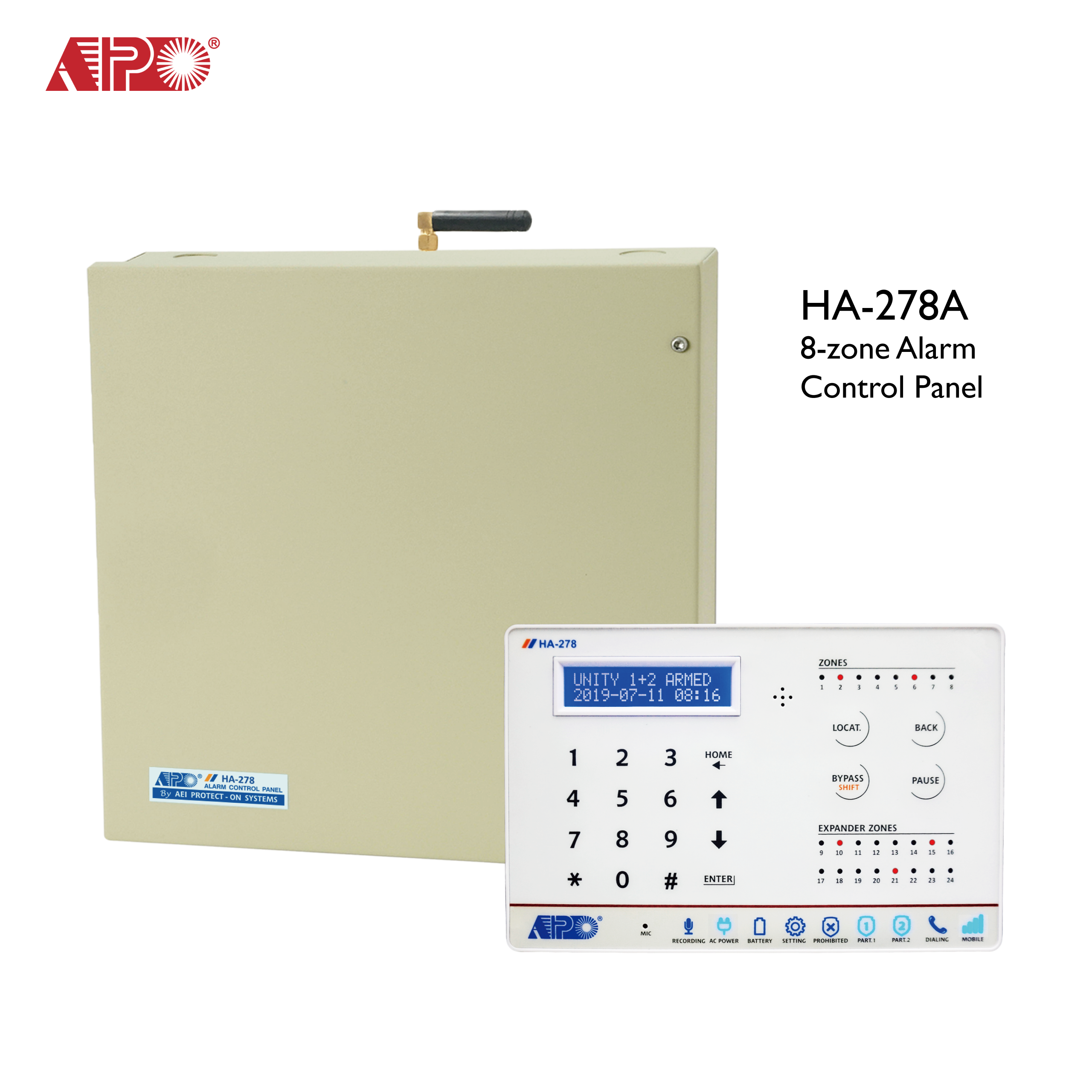

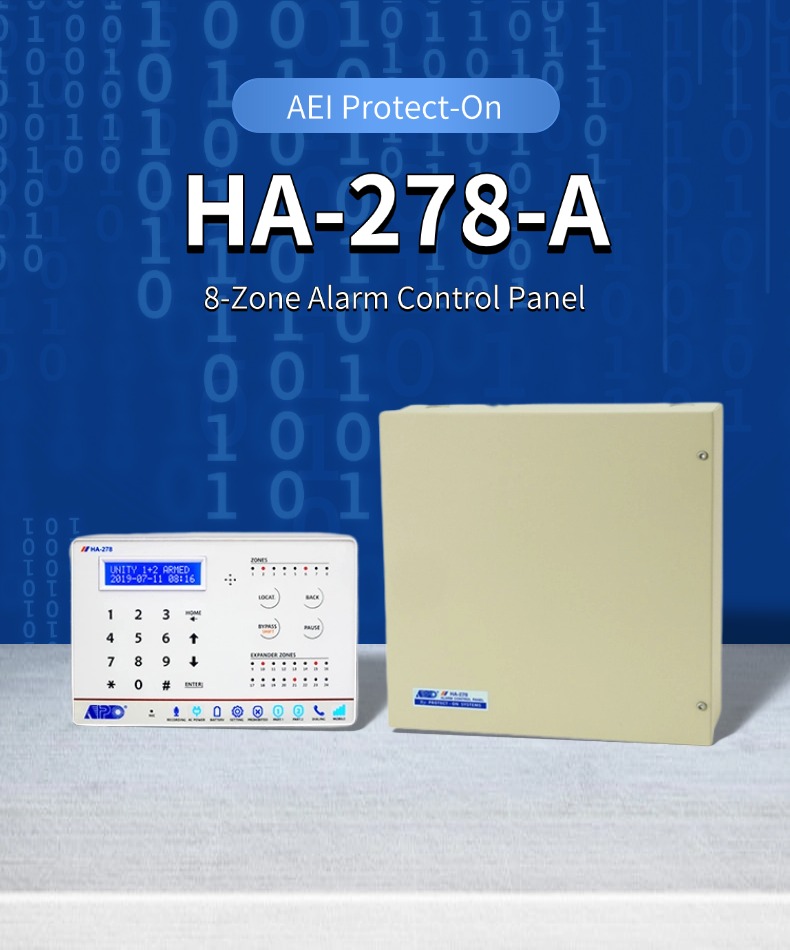

HA-278-A Alarm Panel

8-zone Alarm Control Panel for Home & Office
Built-in with Auto-dialer & Communicator for Alarm Reporting

• Protection Zones : 8 Protection Zones, Expandable to 24 Zones (with Optional Zone Expander)
• Zone Loop Response : Each Programmable for 25-750mS Response Time & 2-9 Pulse Counts
• Control Console : Full Feature Control Console for Master and Expander units
• Communication : PSTN & Mobile (Optional Plug-in 2G or 3G Cellular Module) Networks
• Communicator :
a) Compatible with Standard Contact ID® Alarm Monitor Stations
b) Compatible with APO’s MS-270 Alarm Monitor Station on PC Platform
• Auto-Dialer : Voice Message (PSTN or Mobile) & SMS (Mobile Only) for Alarm Reporting
• Communication Lines : Two Lines for Communicator & Four Lines for Auto-Dialer (PSTN or Mobile )
• Alarm Outputs :
a) 12VDC Output with Programmable Timing of 2-999 Seconds for Siren
b) 12VDC Output Latched for Strobe Light Until System Disarm
c) 12VDC Output OFF for Satellite Siren Until System Disarm (12VDC Output ON for Satellite Siren Hold OFF While System Disarmed)
• Dual Entry Delays : Dual 2-999 Seconds Programmable Timers with or without Entry Beep Warning
• Power Source : 16.5VAC, 3A or 24VDC, 3A
• Backup Battery : 6.5-7.0AH, 12V, Rechargeable Sealed Lead Acid
• Standby Current : 90mA Typical
• Temperature Range : 0 Deg C to +65 Deg C
• Humidity Range : 5-95% Relative Humidity Non-condensing
• G. Weight : 2.5 Kgs Typical (Master Unit & Control Console)
• Dimensions :
a) Master Unit – 265(W) X 270(H) X 78(D) mm
b) Control Console – 190(W) X 125(H) X 22(D) mm
