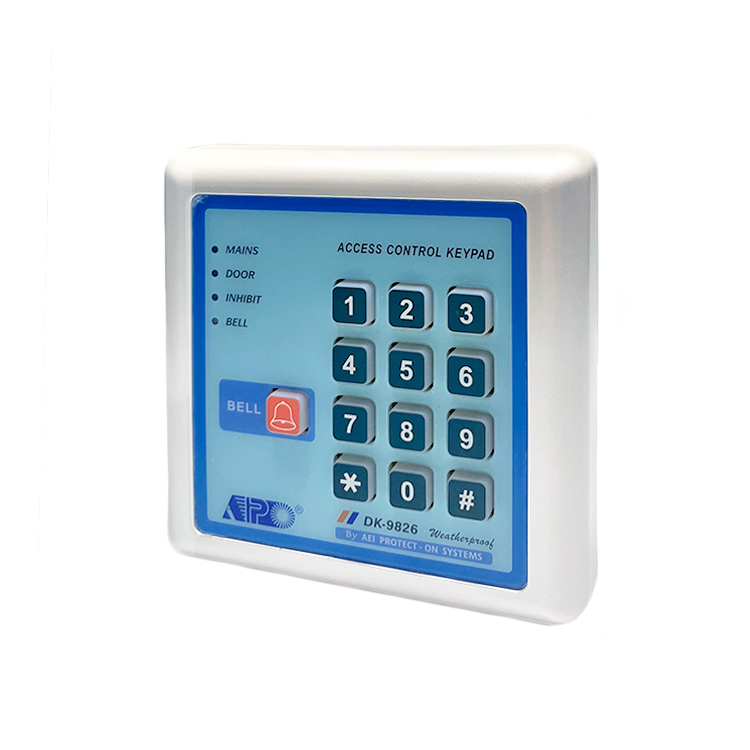

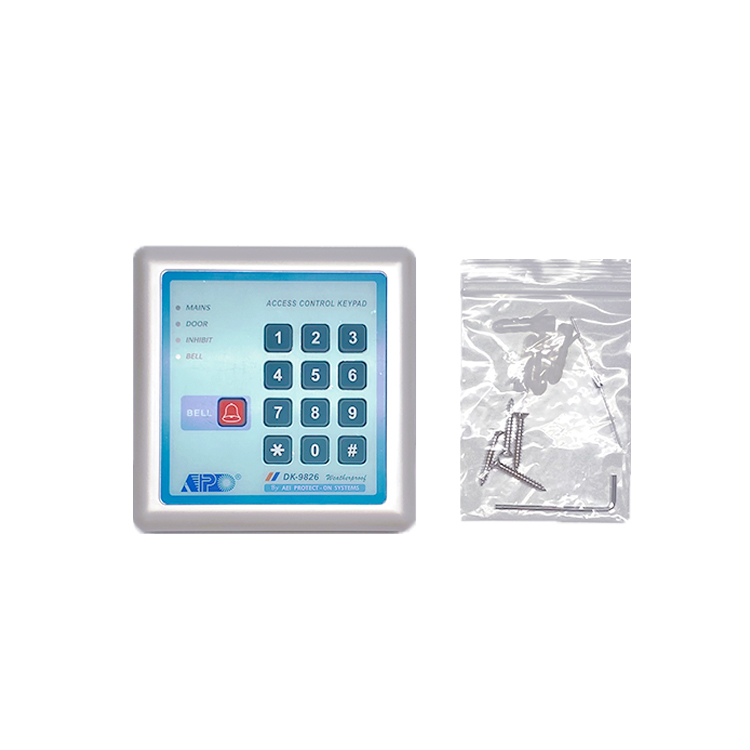

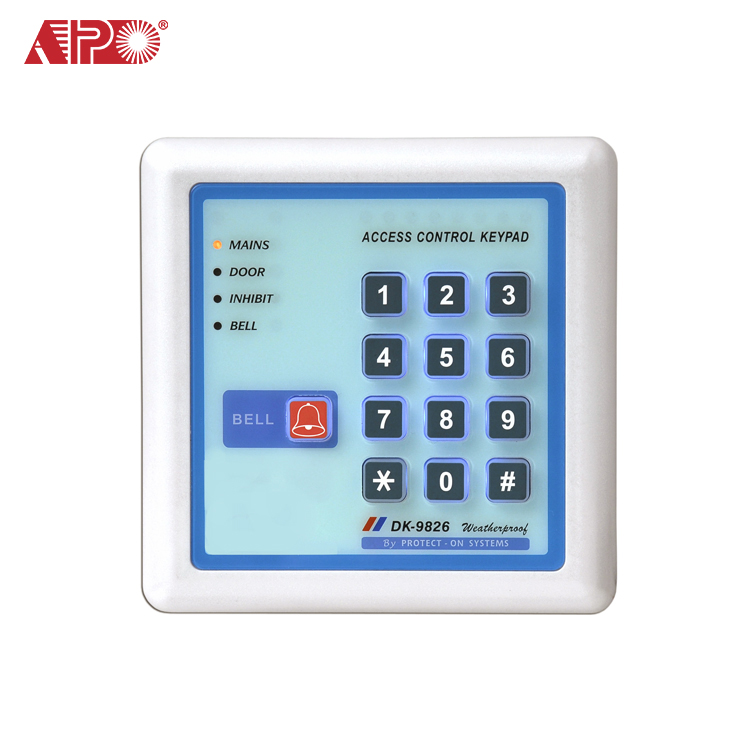

DK-9826 Keypad
DK-9826 is a simple access control keypad. The keypad has two different modes which Single User Mode and Multi-User Mode. Single User Mode only contains 1 user code. Multi-User Mode contains upto 100 user code.
The keypad is easy to program and ideally suited for door strike and alarm arm-disarm controls.

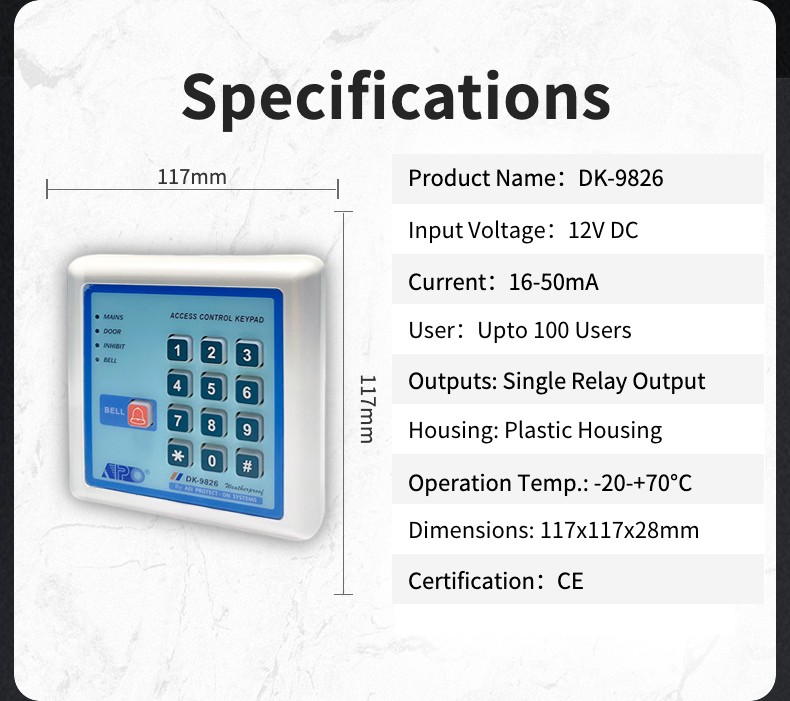

Description
If more specification is needed, please contact APO directly.
Operation Voltage: 12VDC
Current Draw: 16-50mA
Operation Humidity: 5-95%
Operation Temperature: -20-70C
Material: ABS Plastic
Outputs: Output Relay 1 – Solid State Relay

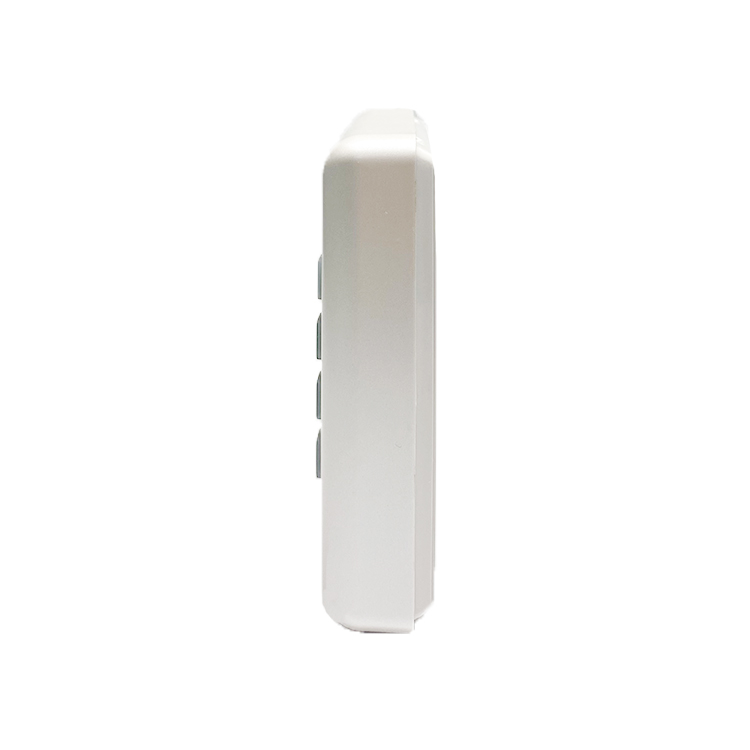

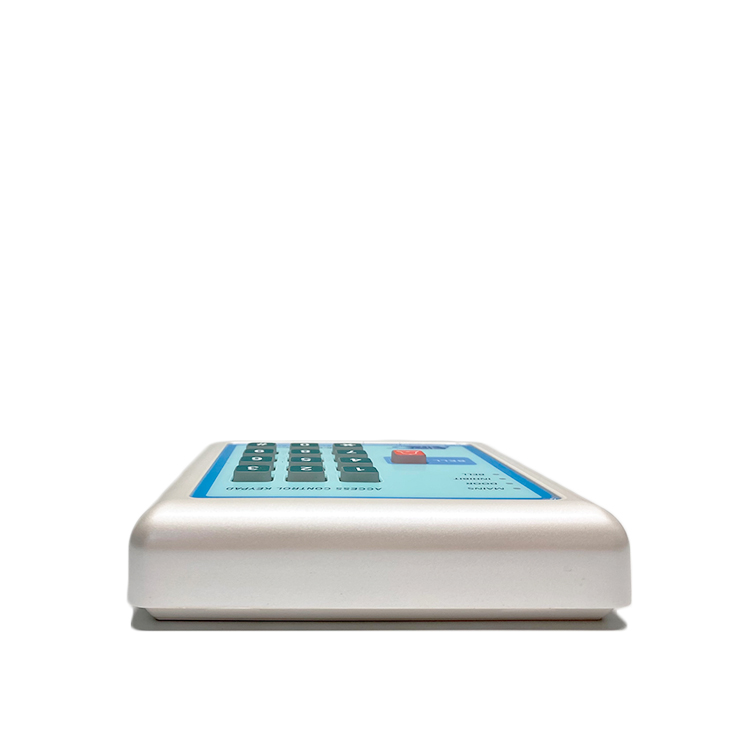

Dimension: 117(H) x 117(W) x 28(D) mm
Weight: 200g
Ingress Protection: IP-54
Purchase Link: Click to HKTVmall
