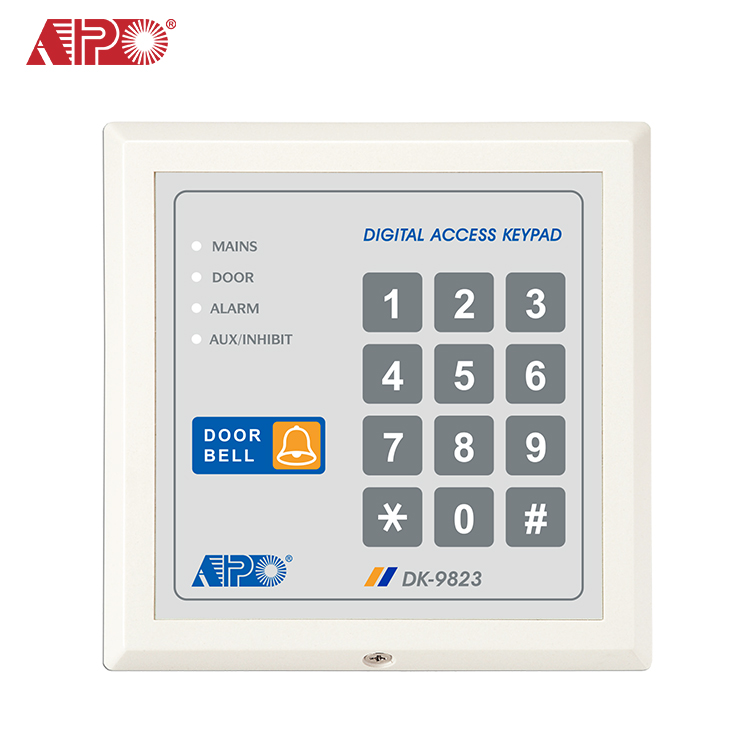

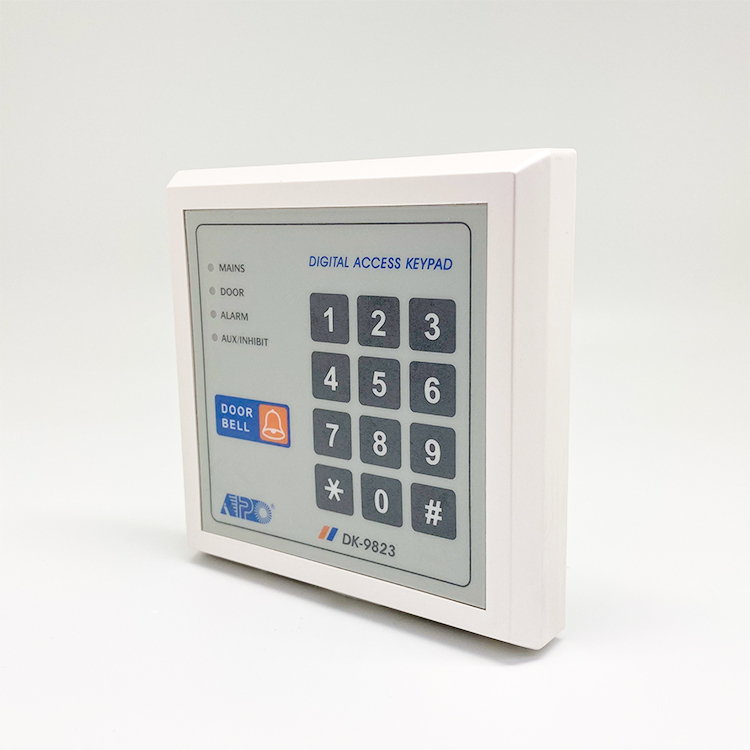

DK-9823 Keypad
DK-9823 is a simple access control keypad. The keypad has two different modes which Single User Mode and Multi-User Mode. Single User Mode only contains 1 user code. Multi-User Mode contains up to 100 user code.
The keypad is easy to program and ideally suited for door strike and alarm arm-disarm controls.
Description
If more specification is needed, please contact APO directly.
Operation Voltage: 12V DC, 11-15V DC
Current Draw: Quiescent – 16mA, Maximum – 78mA (Relays operating)
Operation Humidity: 5-95%
Operation Temperature: -20-70C
Material: ABS Plastic
Outputs: OUTPUT 1 – Solid State Fail Secure or Fail-safe, 3A / 12VDC. Rating
OUTPUT 2 – Normally Closed and Normally Open Dry Contacts, 1A / 24VDC Max. Rating
DOOR BELL – 50mA / 24VDC Max. Rating, Tact Switch Normally Open Dry Contact
Dimension: 117(H) x 117(W) x 21(D) mm
Weight: 180g
Ingress Protection: Indoor Use
