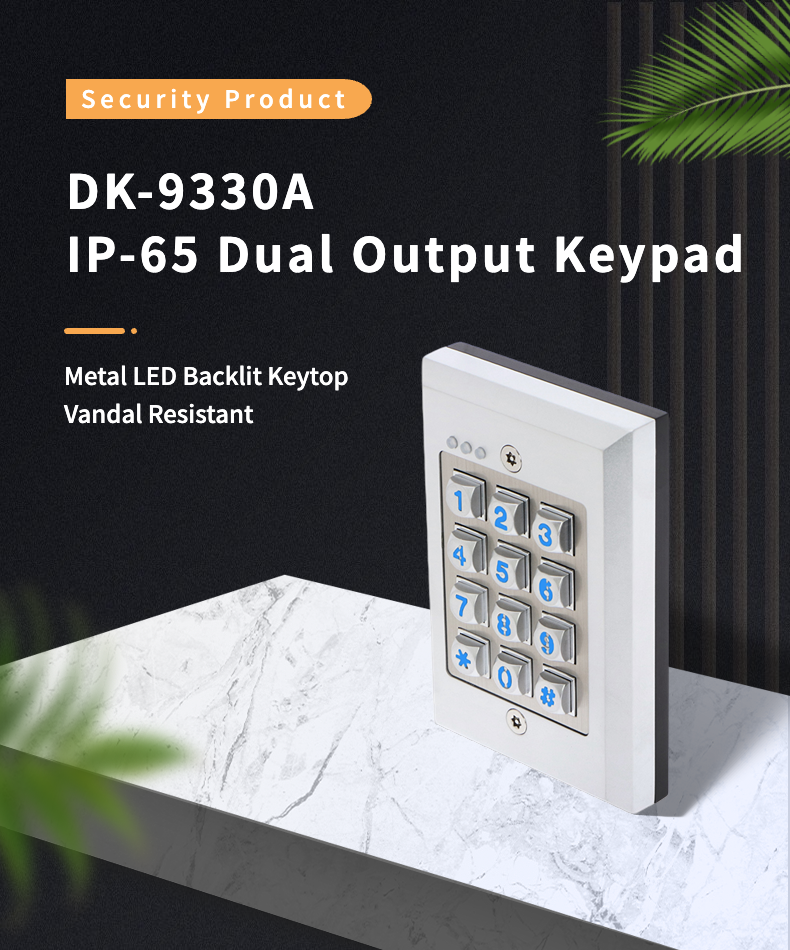

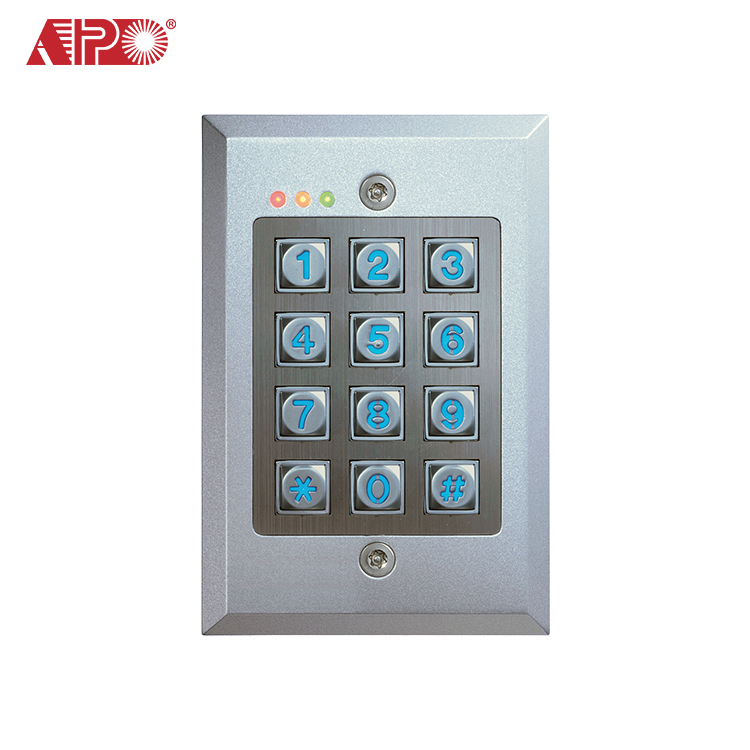

DK-9330A Keypad
DK-9330 is a vandal resistant simple access control keypad. The keypad has two different modes which Single User Mode and Multi-User Mode. Single User Mode only contains 1 user code. Multi-User Mode contains upto 100 user code.
The keypad is easy to program and ideally suited for door strike and alarm arm-disarm controls.
Description
If more specification is needed, please contact APO directly.
This is the A version. The Star Button version.

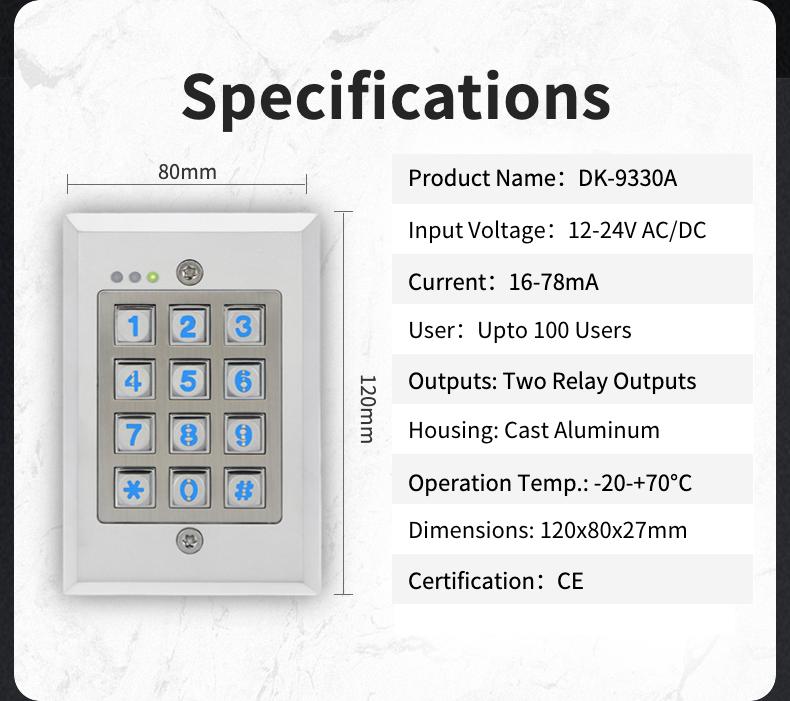

Operation Voltage: 12-24V AC/DC, full voltage range
Current Draw: 16-78mA
Operation Humidity: 5-95%
Operation Temperature: -20-70C
Material: Die-Cast Aluminum & Stainless Steel
Outputs: Output Relay 1 – NC/NO Dry Contact
Output Relay 2 – NC/NO Dry Contact, selectable with jumper
Dimension: 120(H) X 80(W) X 27(D)mm
Weight: 500g
Ingress Protection: IP-65
Purchase Link: Click to HKTVmall
