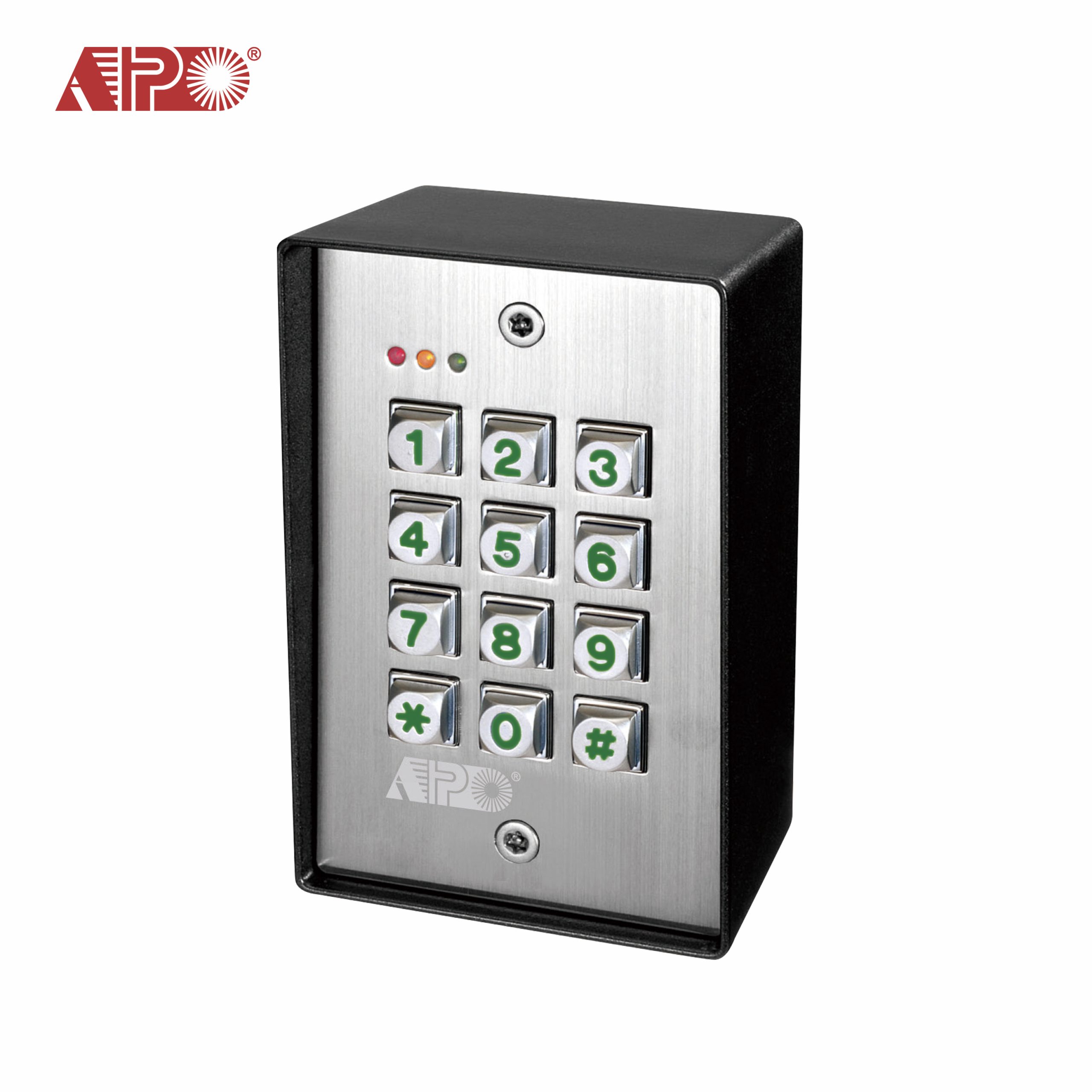

DK-6851A Network Keypad
DK-6851 is a vandal resistant standalone access control keypad with TCP/IP communication. The keypad has output 1, output 2, Wiegand and door sensing input.
There are two programming methods for the keypad, local and TCP/IP web browser. Local and TCP/IP web browser are build-in the keypad. All programmed data is saved inside the keypad. If there is a network problem, the keypad will still operation.
End-user can connect all the TCP/IP Keypads into a network switch, and make the keypad into a access control systems with a unique IP number for each device.
APO also developed a access control software “Access Control IP Utility” which is free to dowload for the DK-6800 Series in the Download page.
Description
If more specification is needed, please contact APO directly.
This is the A version. The Star Button is the A version.
Operation Voltage: 12-24V AC/DC
Current Draw: 170-270mA@12VDC, 80-140mA@24VDC
Operation Humidity: 5-95%
Operation Temperature: -20-70C
Material: Die-Cast Aluminium & Stainless Steel
Outputs: Output Relay 1 – NC/NO Dry Contact, Output Relay 2 – NC/NO Dry Contact
Dimension: 79(H) x 125(W) x 46-54(D) mm
Weight: 520g
Ingress Protection: IP-66
Purchase Link: Click to HKTVmall
