DK-6812 Network Fingerprint Keypad (MIFARE Card Reader)

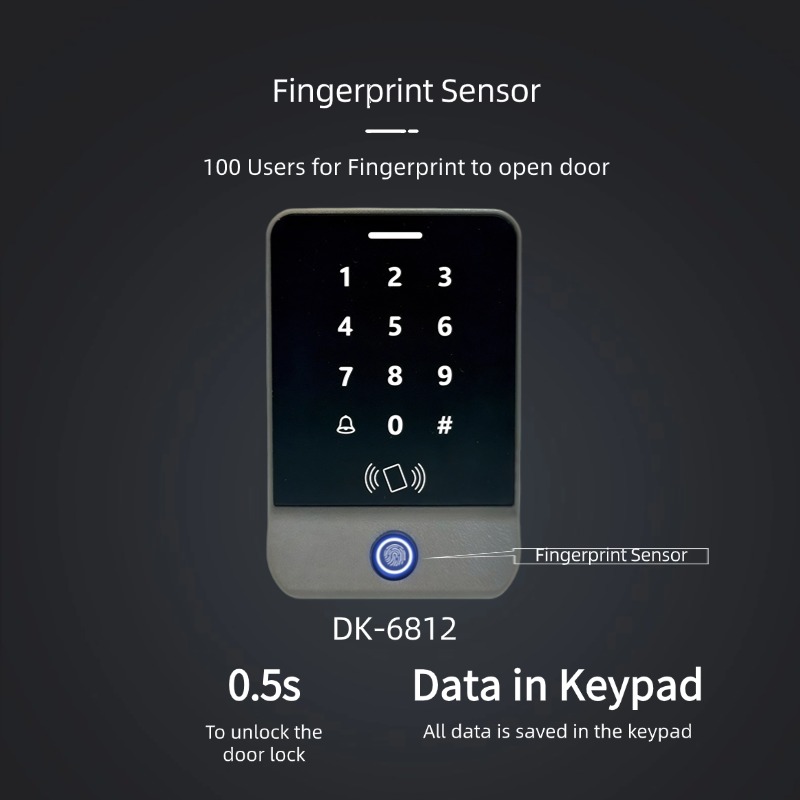

DK-6812 is a standalone access control keypad with TCP/IP communication. The keypad has output 1, Wiegand, doorbell and door sensing input. DK-6812 has fingerprint reader for access.

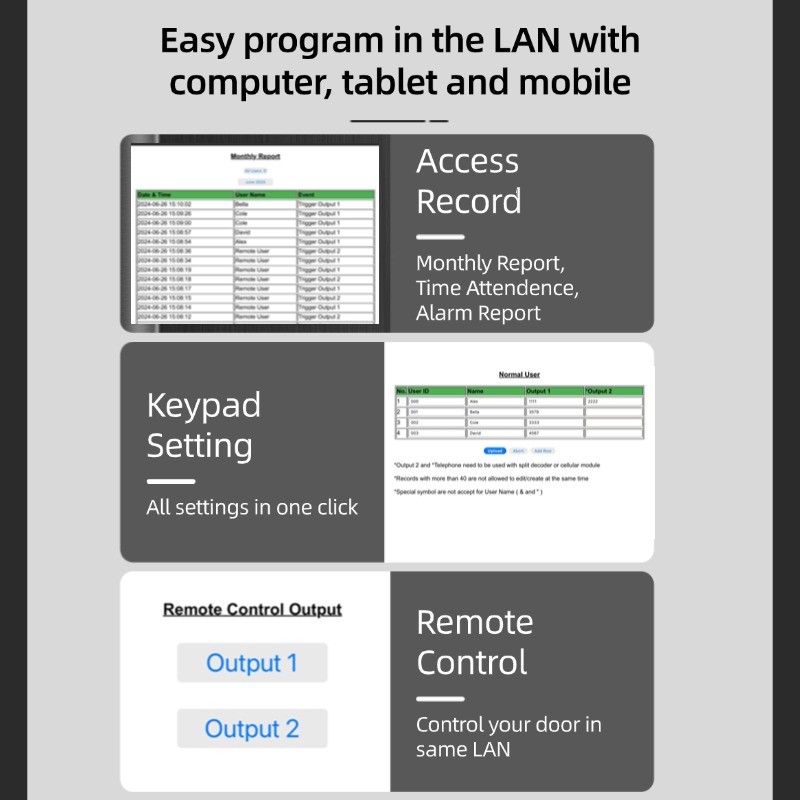

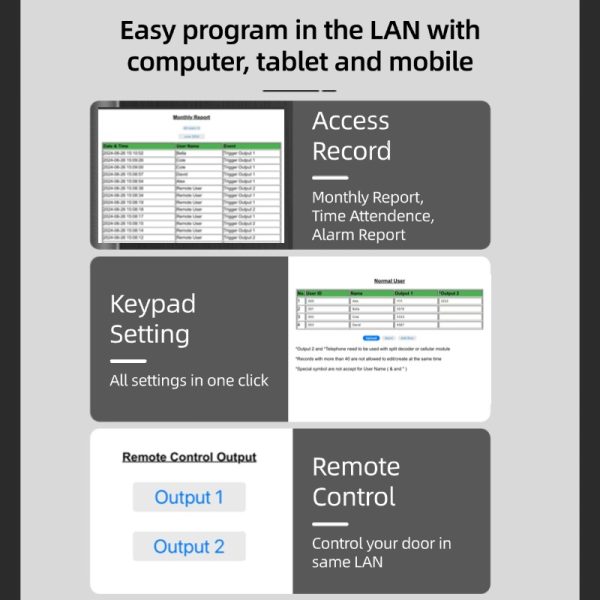

There are two programming methods for the keypad, local and TCP/IP web browser. Local and TCP/IP web browser are build-in the keypad. All programmed data is saved inside the keypad. If there is a network problem, the keypad will still operation.
End-user can connect all the TCP/IP Keypads into a network switch, and make the keypad into a access control systems with a unique IP number for each device.
APO also developed a access control software “Access Control IP Utility” which is free to dowload for the DK-6800 Series in the Download page.
Description
If more specification is needed, please contact APO directly.

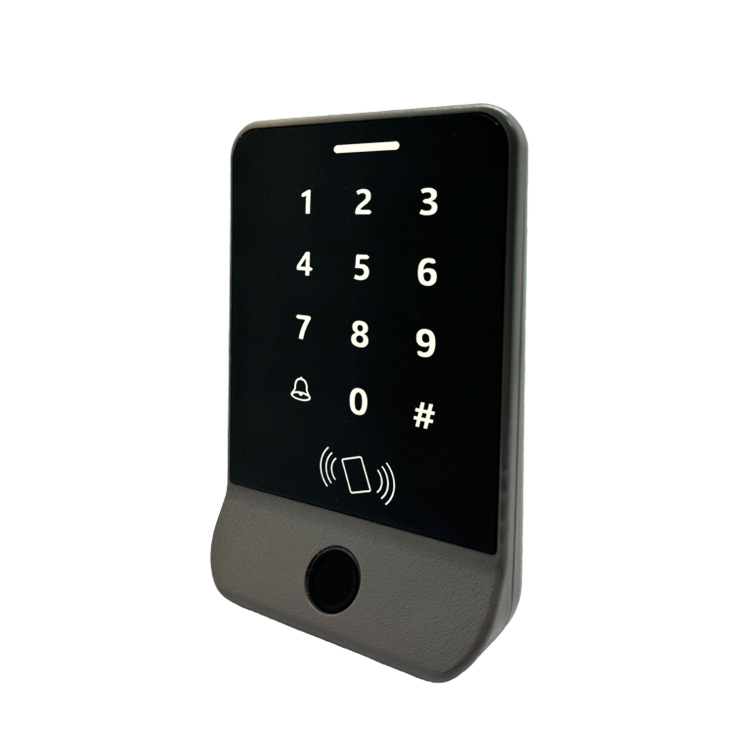

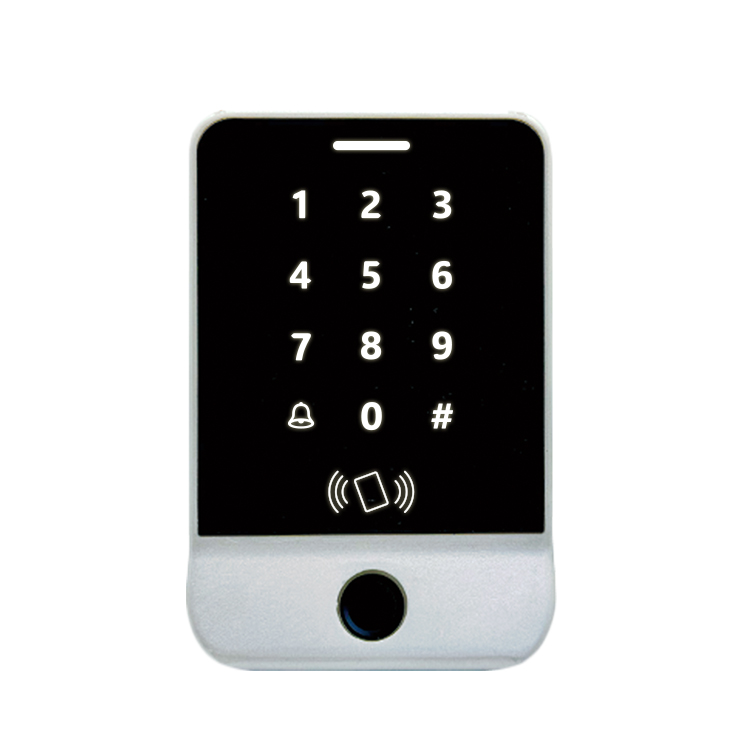

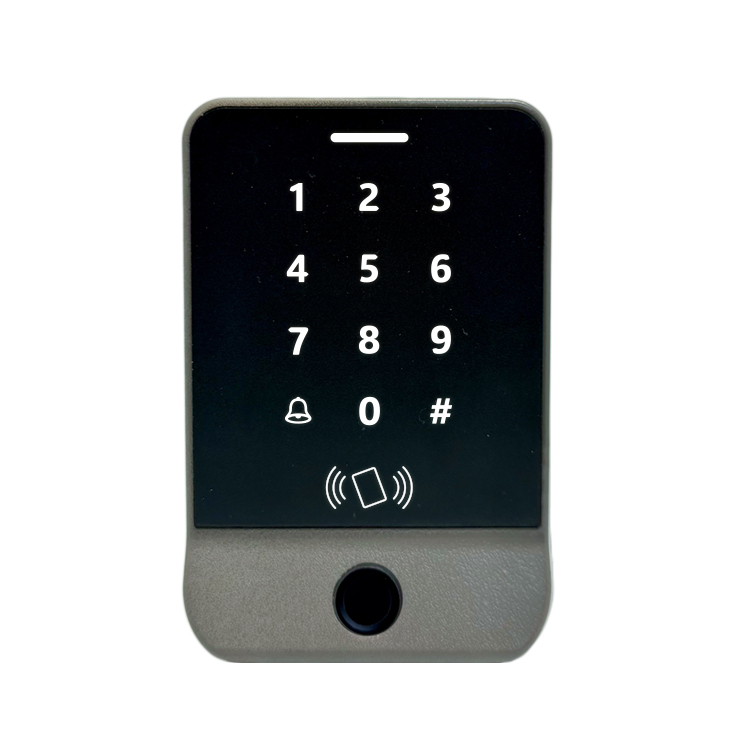

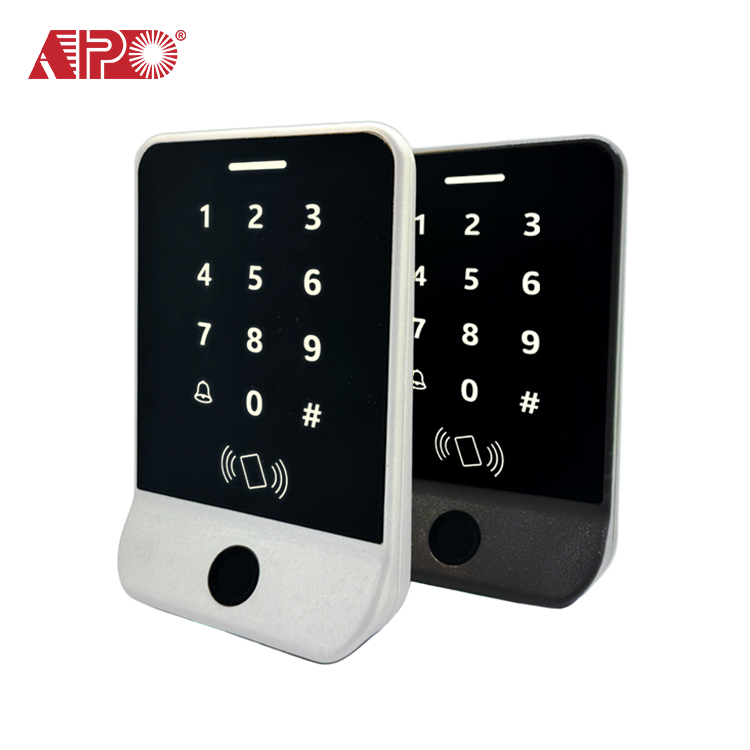

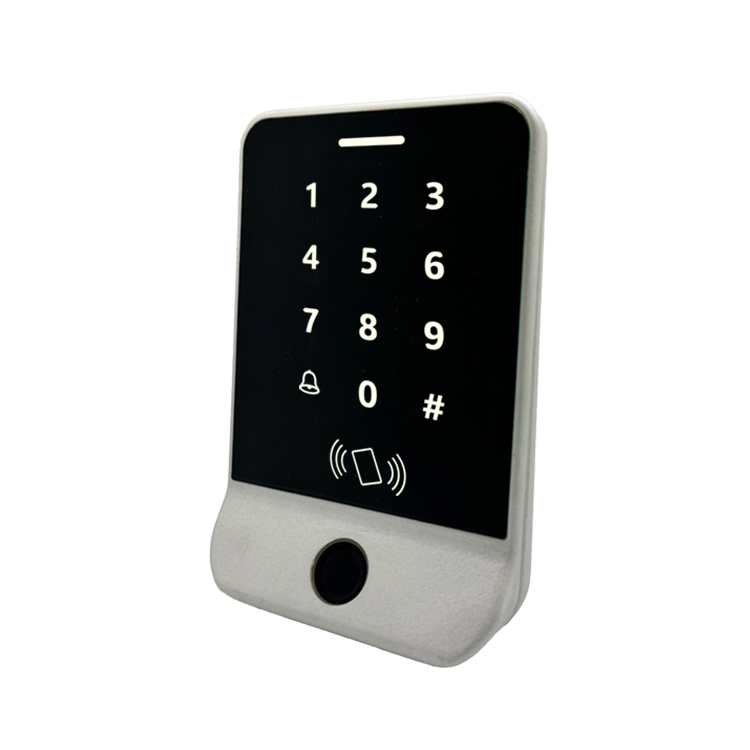

There are two colours, Grey – DK-6812, Sliver – DK-6812-S.

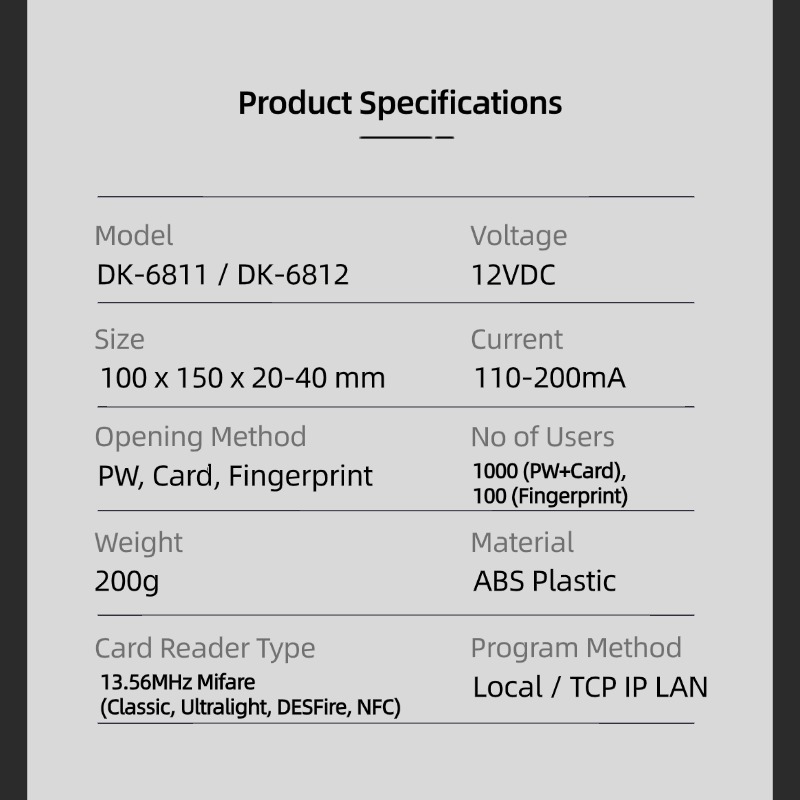

Operation Voltage: 12VDC
Current Draw: 110-200mA
Operation Humidity: 5-95%
Operation Temperature: -20-70C
Material: ABS Plastic
Outputs: Output Relay 1 – Solid State Relay
Dimension: 100(H) x 150(W) x 20-40(D) mm
Weight: 200g
Ingress Protection: Indoor Use

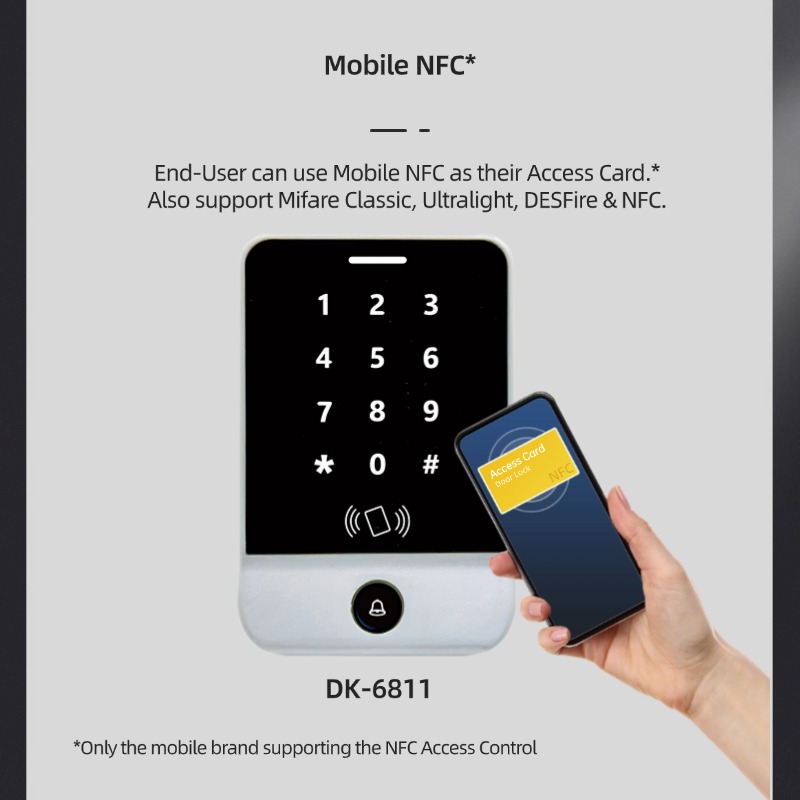

Card Type: 13.56MHz MIFARE Card
Purchase Link: Click to HKTVmall
