DK-2891 Keypad
DK-2891 is a self-contained two output relay, vandal resistant and weatherproof keypad. It combines the digital keypad and proximity EM card reader in one unit.
The keypad is upgradable. It can become a server keypad with the Split Decoder or with the auxiliary keypad reader to become Multi-Station access control systems.
The keypad is ideally suited for door strike and alarm arm-disarm controls.
Description
If more specification is needed, please contact APO directly.

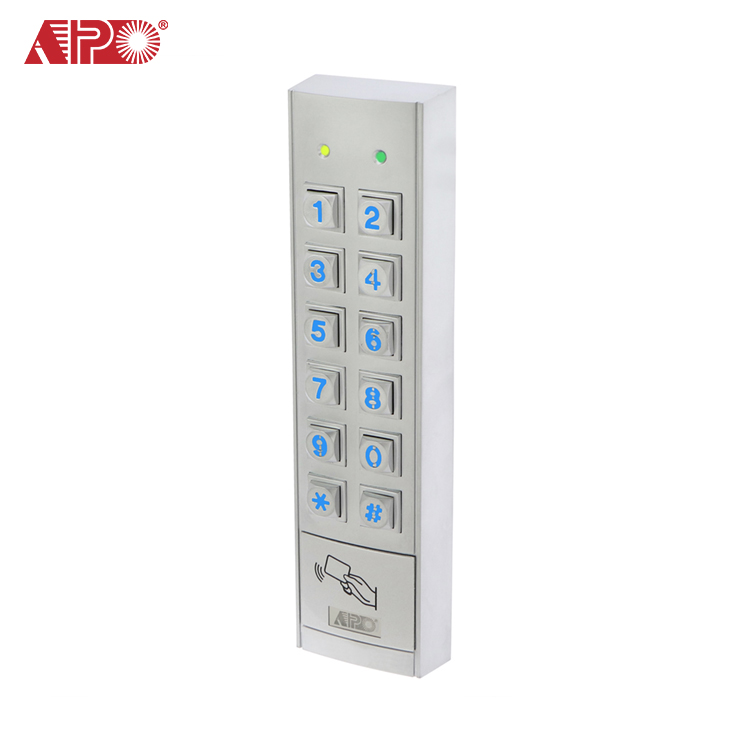

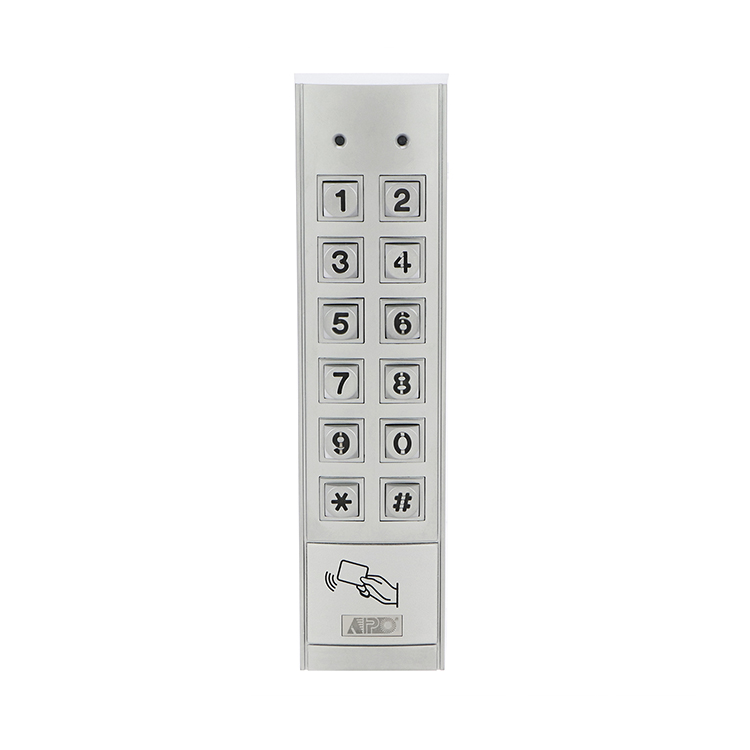

A is the standard star button version.

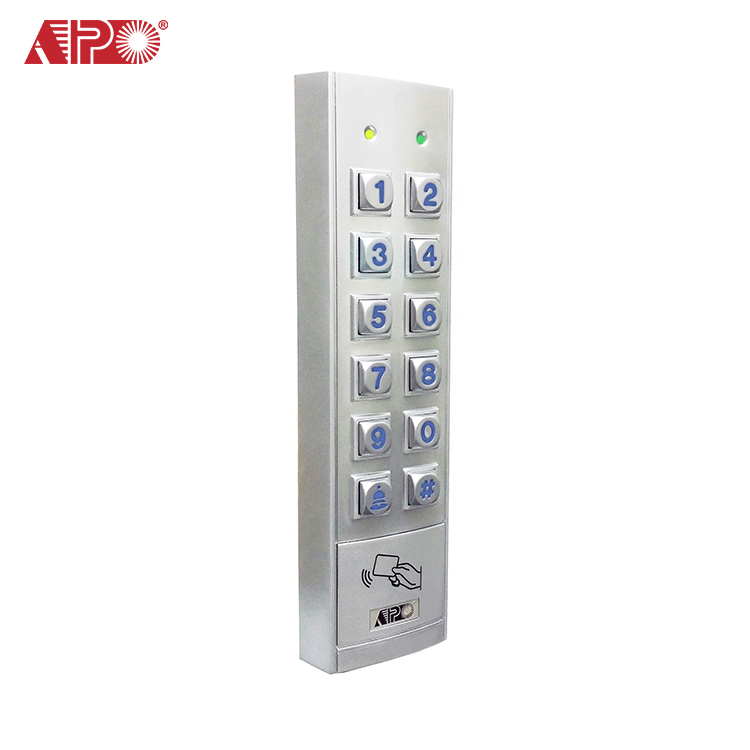

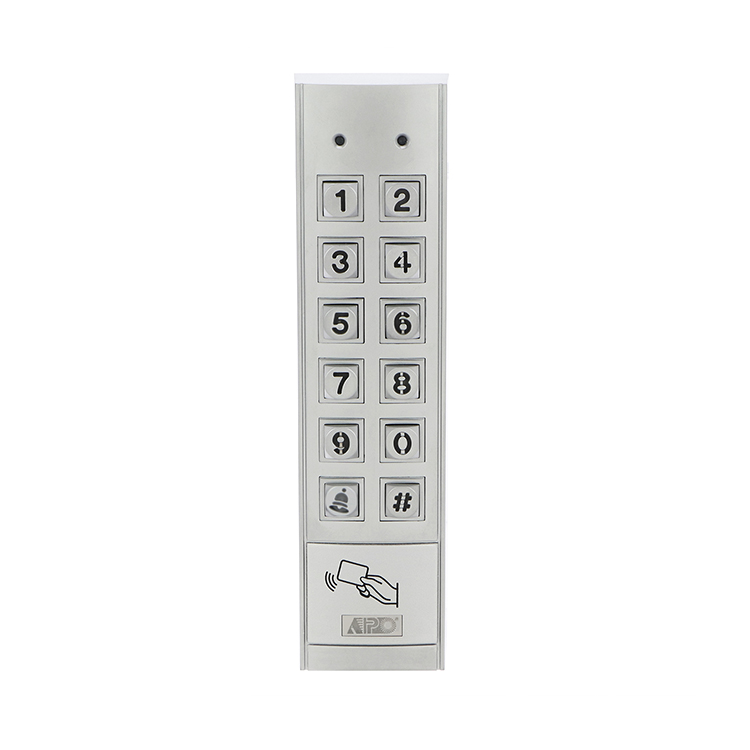

B is the doorbell button version.
Operation Voltage: 12VDC
Current Draw: 60-100mA
Operation Humidity: 5-95%
Operation Temperature: -20-70 °C
Material: Zinc Alloy Die Casting Housing
Outputs:
Output Relay 1 – N.C. & N.O. Dry contacts, 2A/24VDC Max.
Output Relay 2 (or Door Bell) – N.O. & N.C. Dry contacts, 1A/24VDC Max
Dimension: 179.7(H) X 46(W) X 21/25(D)mm
Weight: 476g
Ingress Protection: IP-55
Card Type: 125KHz EM Card
