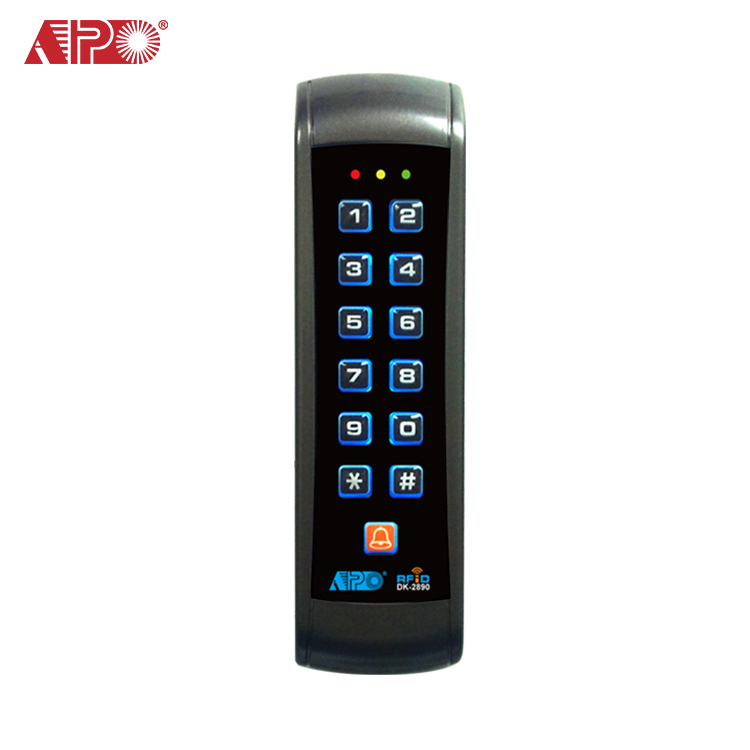

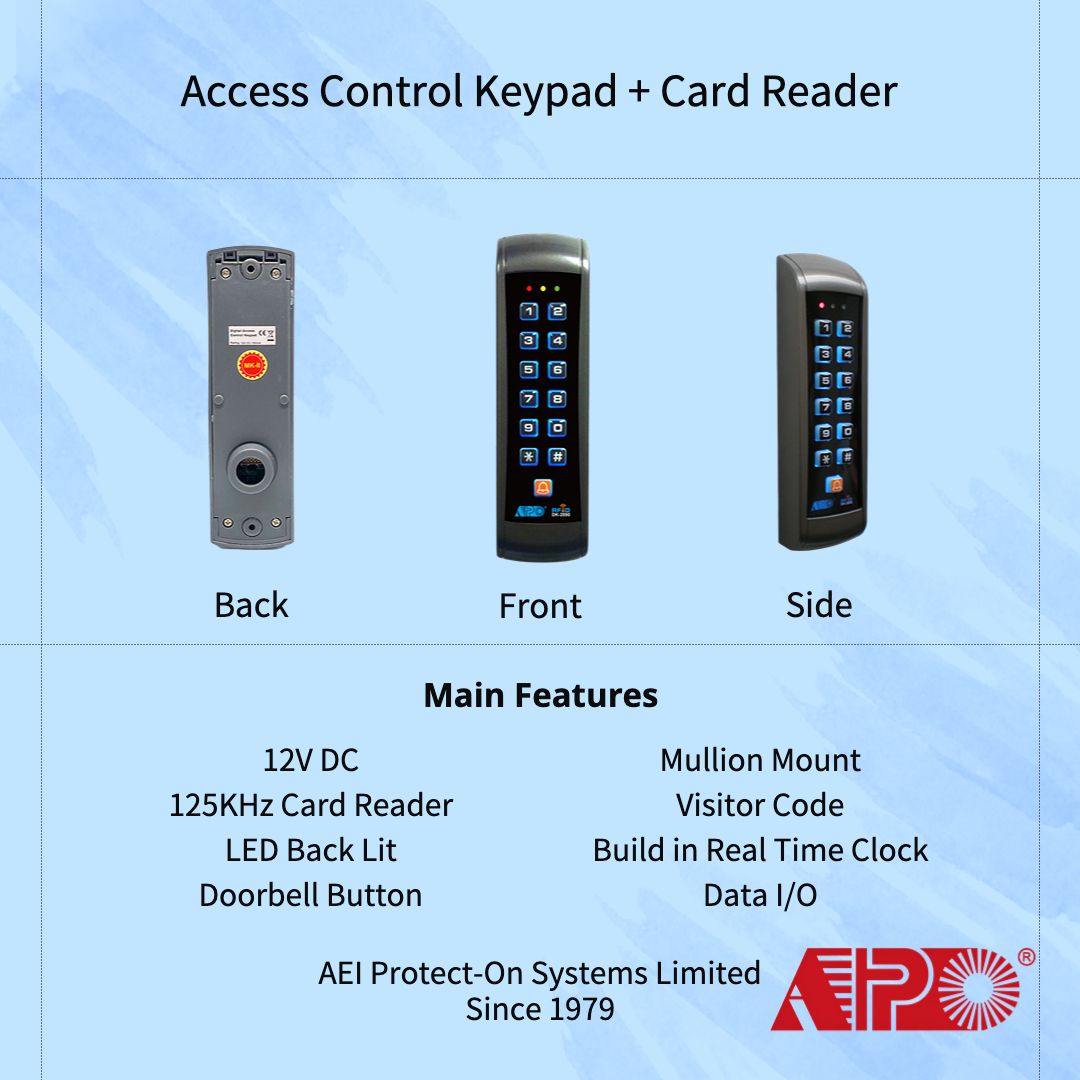

DK-2890 Keypad
DK-2890 is a self-contained single output relay keypad. It combines a digital keypad and a proximity EM card reader in one unit.
The keypad is upgradable. It can become a server keypad with the Split Decoder or with the auxiliary keypad reader to become Multi-Station access control systems.
The keypad is ideally suited for door strike and alarm arm-disarm controls.
Description
If more specification is needed, please contact APO directly.
Operation Voltage: 12VDC
Current Draw: 60-100mA
Operation Humidity: 5-95%
Operation Temperature: -20-70C
Material: ABS Plastic
Outputs: Output Relay 1 – Solid State Relay
Output Relay 2 (Door Bell) – N.O. Dry contact

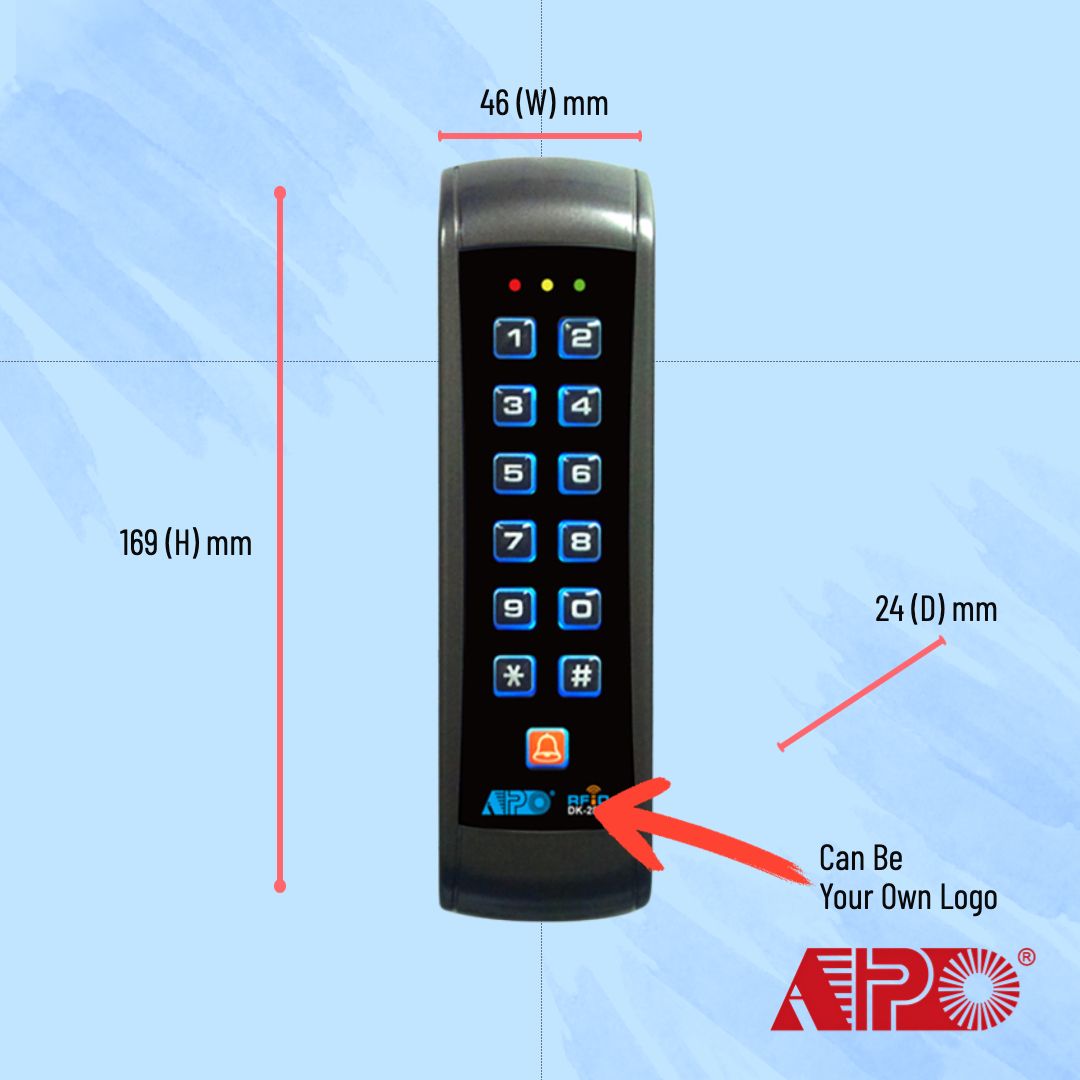

Dimension: 169(H) X 46(W) X 24(D)mm
Weight: 160g
Ingress Protection: Indoor Use IP-55
Card Type: 125KHz EM Card
