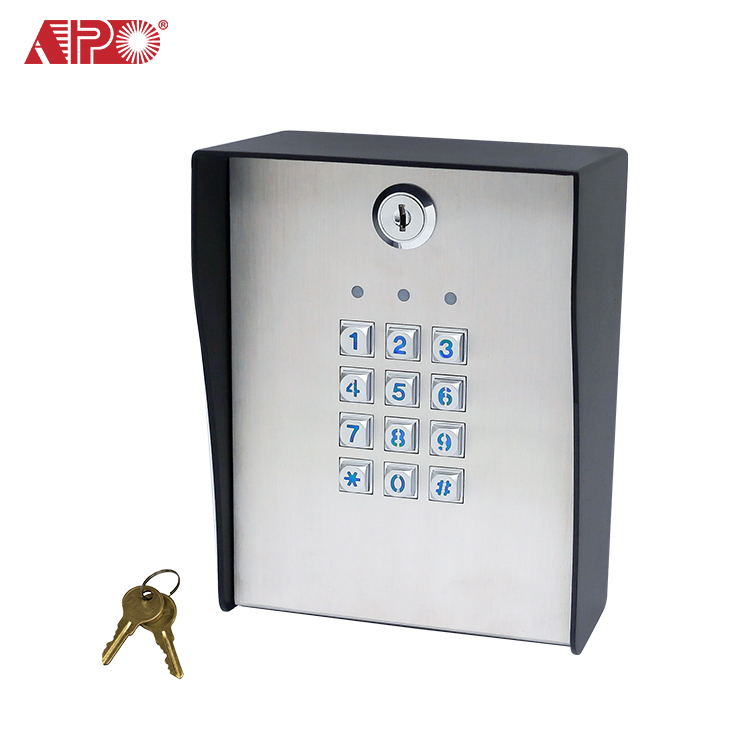

DK-2881G (P0) Keypad
DK-2881G is a self-contained three output relay, vandal resistant and weatherproof keypad. It has been designed for full feature stand alone access control applications.
DK-2881GA — Output Relay 1, 2 & 3 Controlled by User Codes
DK-2881GB — Output Relay 1 & 2 Controlled by User Codes; Output 3 by Bell Button
The keypad is upgradable. It can become a server keypad with the Split Decoder or with the auxiliary keypad reader to become Multi-Station access control systems. If end-use would like to use the mobile phone to do control, a Wi-Fi Module is an option to upgrade as well.
The keypad is ideally suited for door strike and alarm arm-disarm controls.
Description
If more specification is needed, please contact APO directly.
GA is the standard star button version. GB is the doorbell button version.
–
Operation Voltage: 12-24V AC/DC
Current Draw: 75mA to 145mA
Operation Humidity: 5-95%
Operation Temperature: -20-70 °C
Material: Die-Cast Aluminum & Stainless Steel
Outputs:
Output Relay 1 – N.C. & N.O. dry contacts, 5A/24VDC Max.
Output Relay 2 – N.C. & N.O. dry contacts, 1A/24VDC Max.
Output Relay 3 – N.C. & N.O. dry contacts, 1A/24VDC Max.
Dimension: 180(H) X 134(W) X 63/85(D)mm
Weight: 1.70Kg net
Ingress Protection: IP-66
