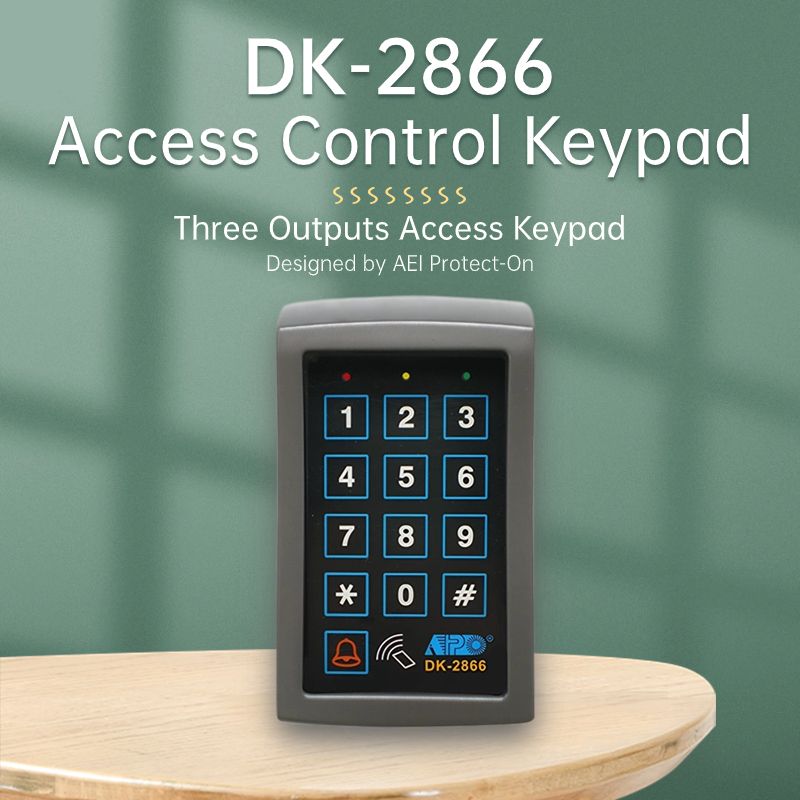

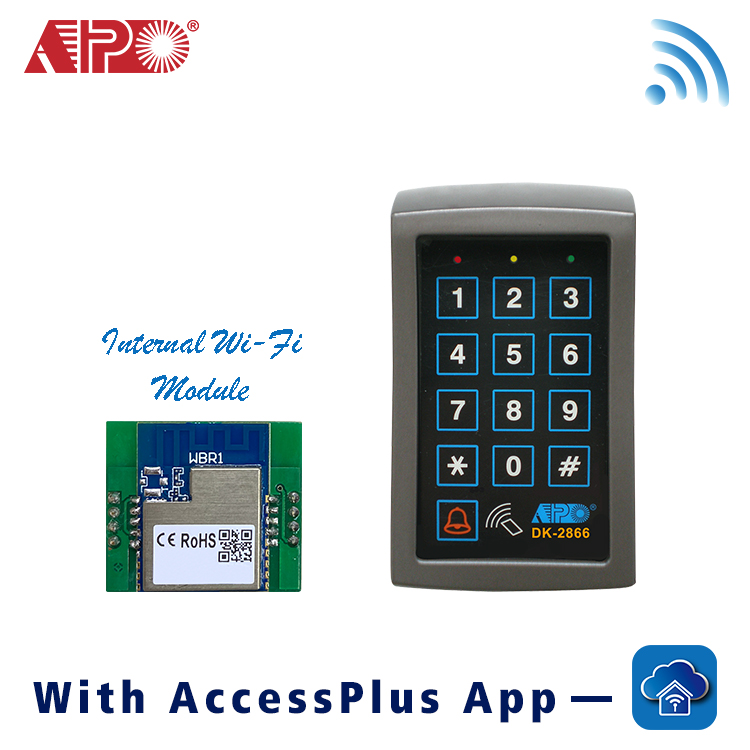

DK-2866 (P1) Keypad with AP-01 Wi-Fi Module
DK-2866 is a simple access control keypad. The keypad has two different modes which Single User Mode and Multi-User Mode. Single User Mode only contains 1 user code. Multi-User Mode contains up to 100 user code.
The keypad is easy to program and ideally suited for door strike and alarm arm-disarm controls.
Description
If more specification is needed, please contact APO directly.

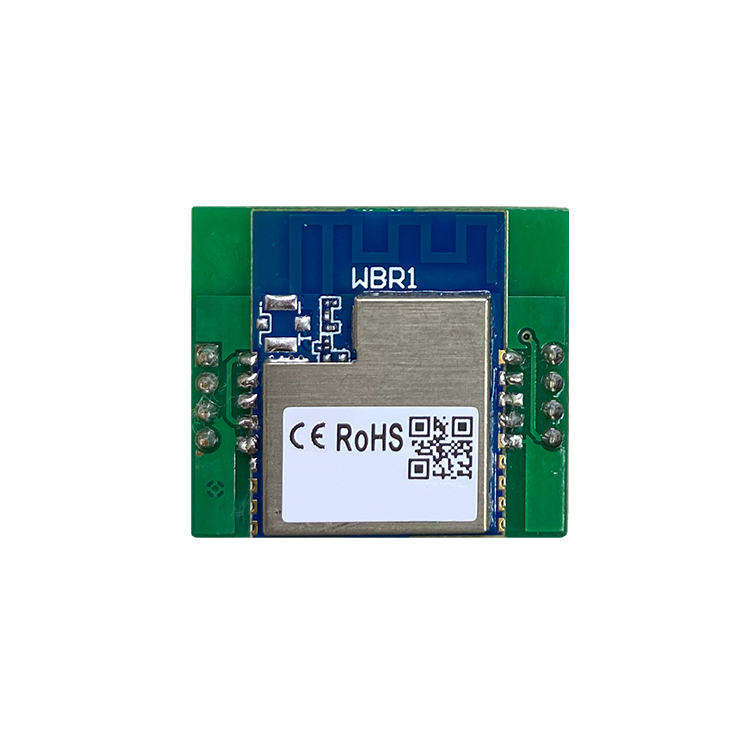

Wi-Fi Module version.
Operation Voltage: 12V DC, 11-15V DC
Current Draw: 60mA (quiescent) to 150mA
Operation Humidity: 5-95%
Operation Temperature: -20-70C
Material: ABS Plastic box
Outputs: Output Relay 1 – Solid State Relay, Fail-safe or Fail-secure selectable, 3A/16 VDC Max.
Output Relay 2 – N.C. & N.O. dry contacts, 1A/24VDC Max
Ingress Protection: IP-65
Dimension: 126(H) X 75(W) X 35-40(D)mm
Weight: 200g
Ingress Protection: Indoor Use
Card Type: 125KHz EM Card
Purchase Link: Click to HKTVmall
