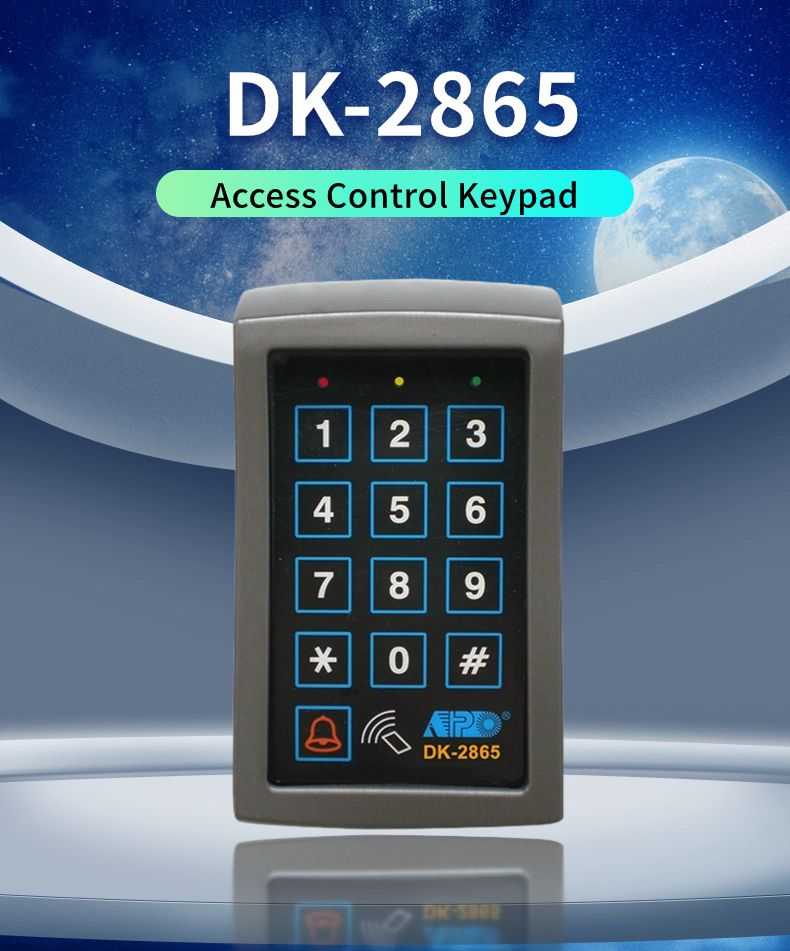

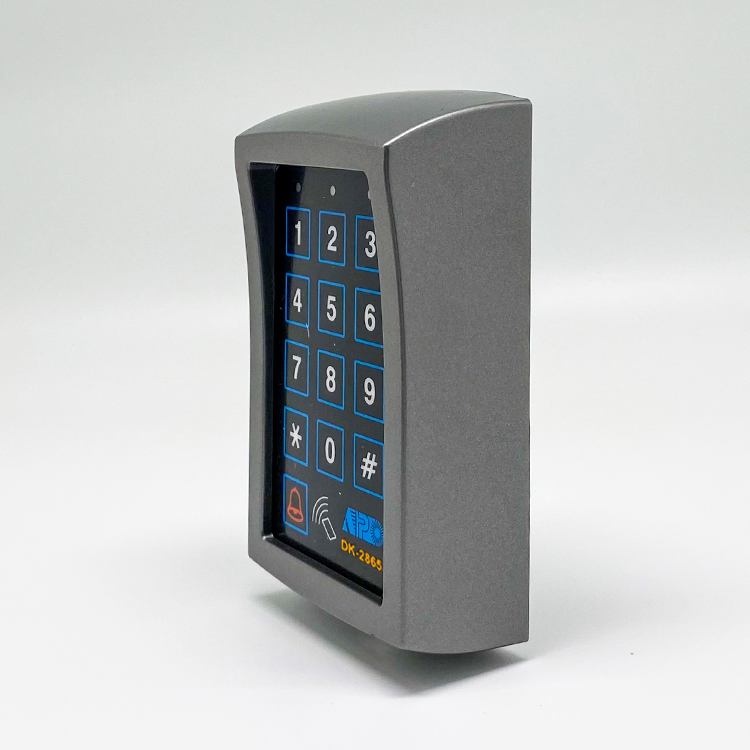

DK-2865 (P0) Keypad (Copy)
DK-2865 is a simple access control keypad. The keypad has two different modes which Single User Mode and Multi-User Mode. Single User Mode only contains 1 user code. Multi-User Mode contains up to 100 user code.

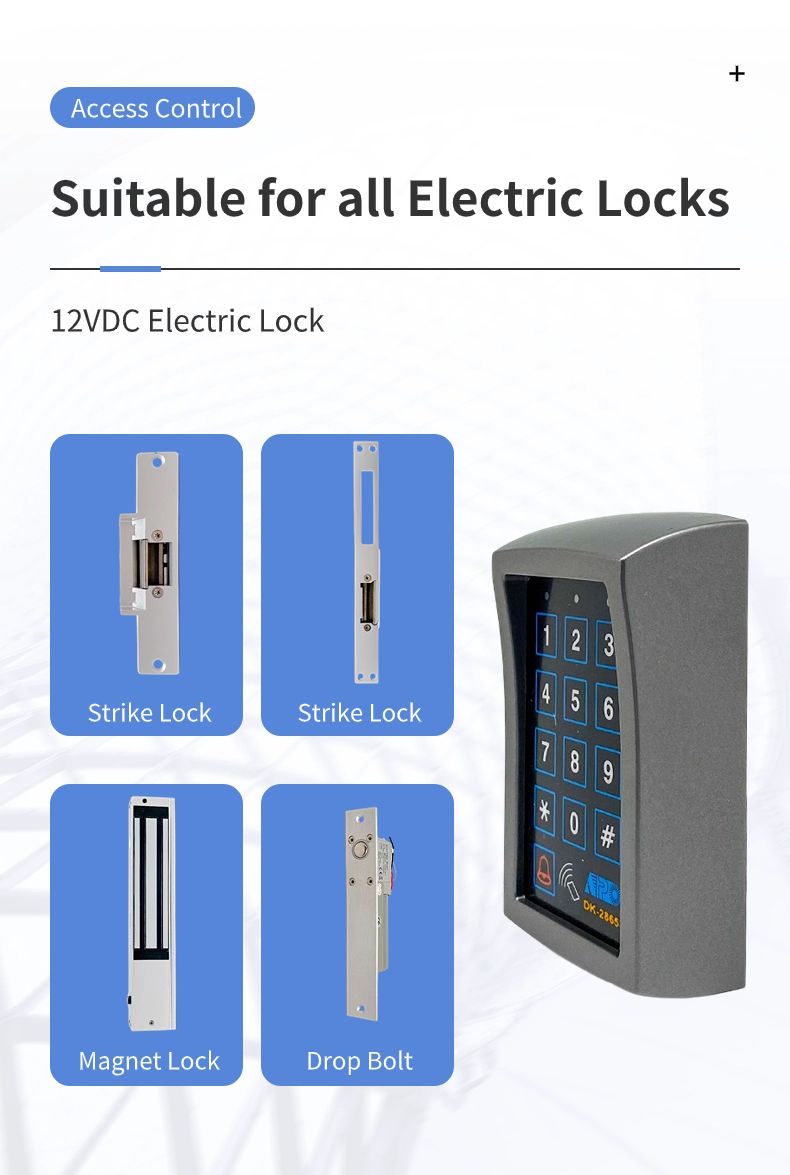

The keypad is easy to program and ideally suited for door strike and alarm arm-disarm controls.
Description
If more specification is needed, please contact APO directly.
Operation Voltage: 12V DC, 11-15V DC
Current Draw: 50mA (quiescent) to 80mA
Operation Humidity: 5-95%
Operation Temperature: -20-70C °C
Material: ABS Plastic box
Outputs: Output Relay 1 – Solid State Relay
Ingress Protection: IP-65

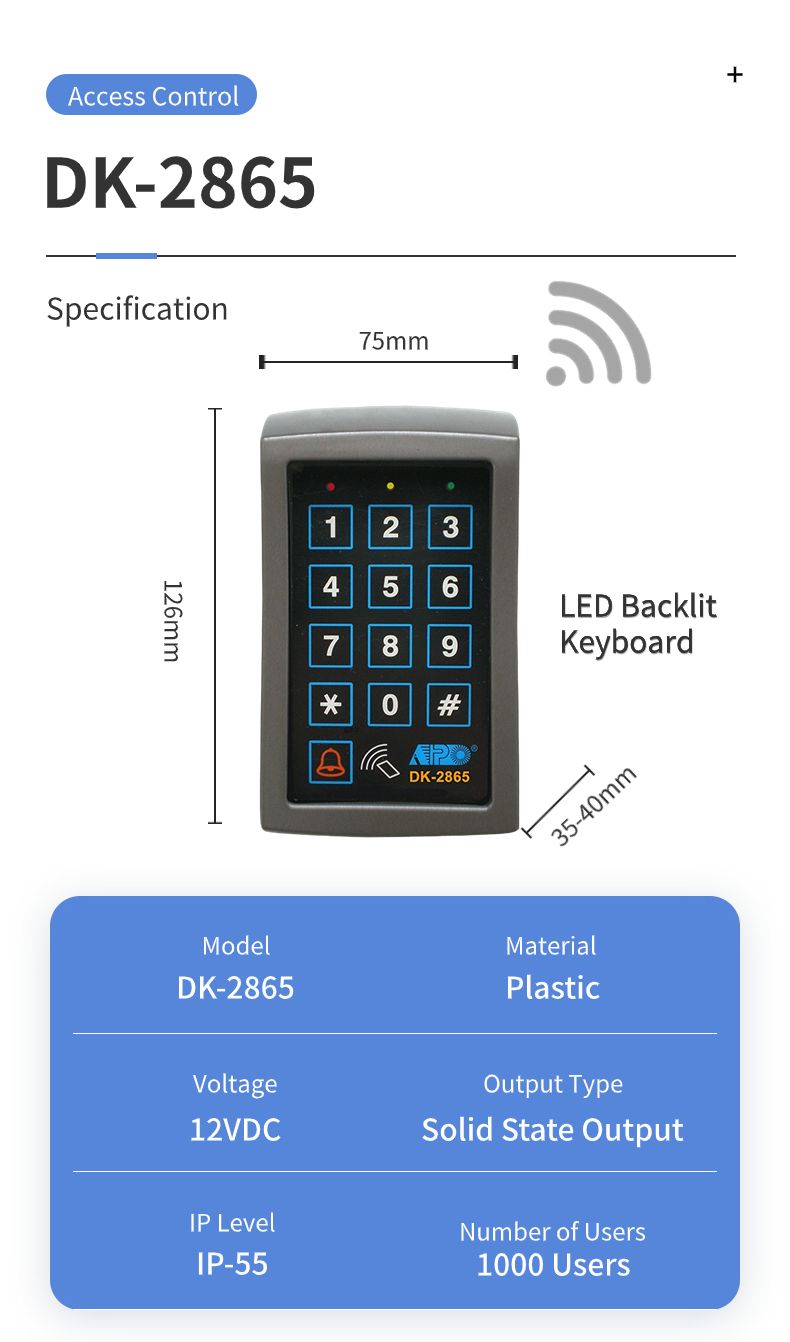

Dimension: 126(H) X 75(W) X 35-40(D)mm
Weight: 200g
Ingress Protection: Indoor Use

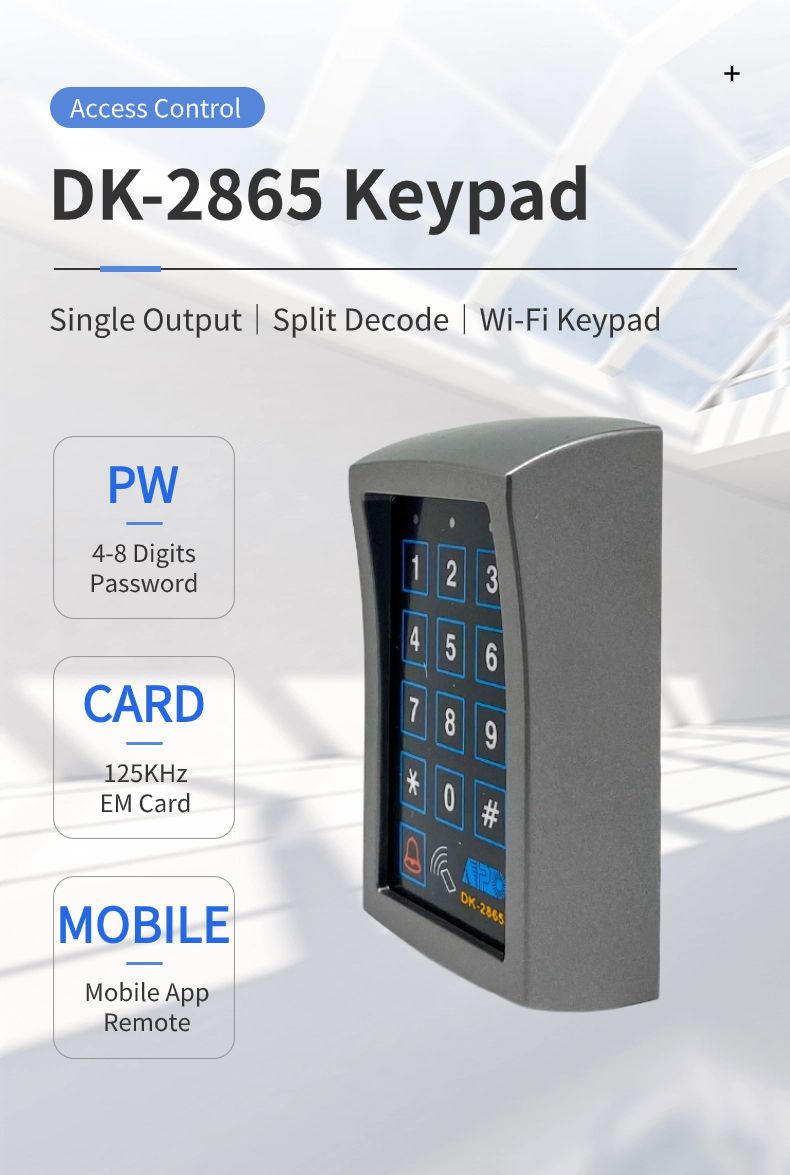

Card Type: 125KHz EM Card
Purchase Link: Click to HKTVmall
