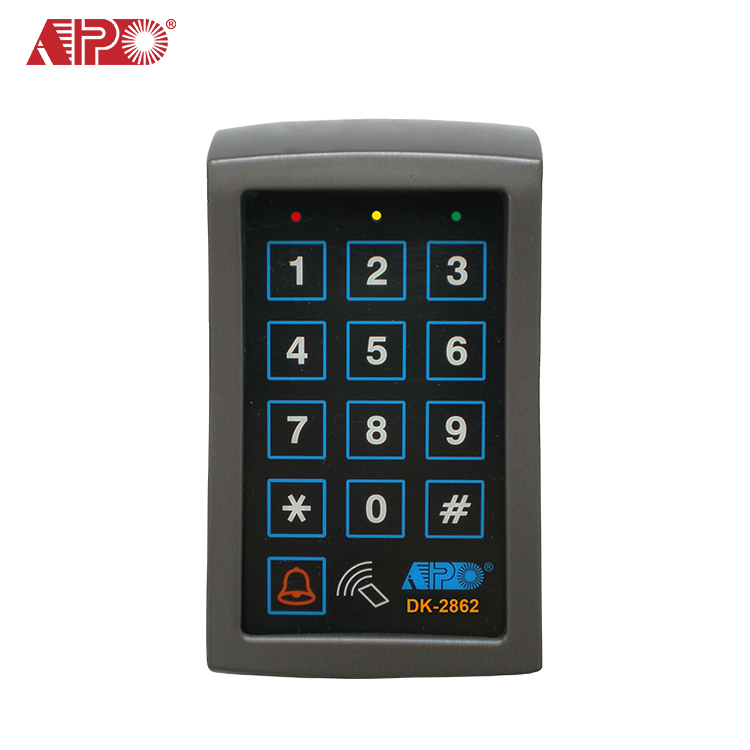

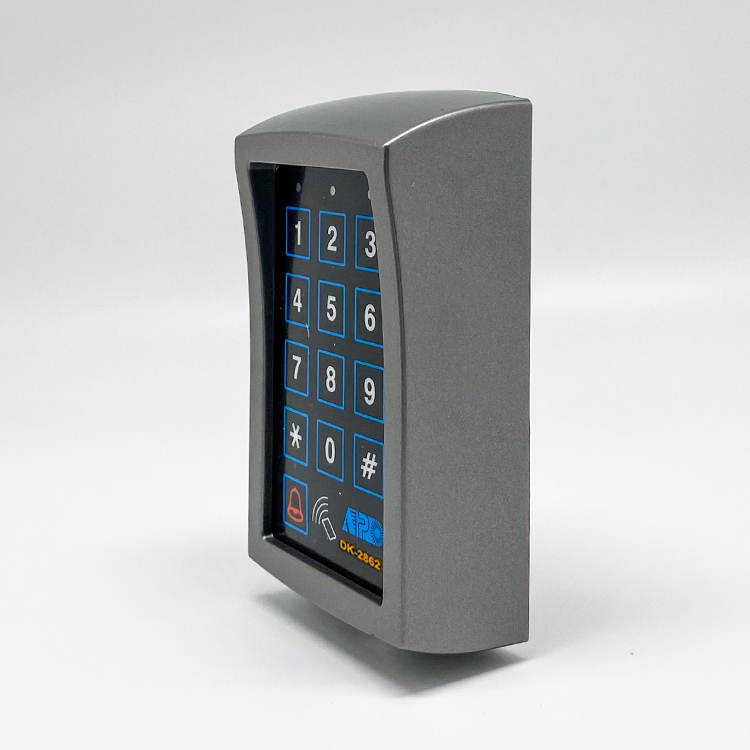

DK-2862 Keypad
DK-2862 is a self-contained full feature digital access control keypad that combines proximity EM card reader in one unit. The keypad has three outputs. The output 1 is a solid state relay selectable to drive Fail-safe or Fail-secure electric lock. Solid state relay gives longer service life and prevents sabotage of energizing the output relay to open the door with a strong magnet. The output 2 is a standard relay with N.C. and N.O. dry contacts for auxiliary controls. The output 3 is a transistor open collector output with maximum sink current of 100mA for driving auxiliary device. It also has a N.O. relay dry contact output for driving an external door bell.
The keypad is upgradable. It can become a server keypad with the Split Decoder or with the auxiliary keypad reader to become Multi-Station access control systems.
The keypad is ideally suited for door strike and alarm arm-disarm controls.
Description
If more specification is needed, please contact APO directly.
Operation Voltage: 12VDC
Current Draw: 60-150mA
Operation Humidity: 5-95%
Operation Temperature: -20-70 °C
Material: ABS Plastic
Outputs: Output Relay 1 – Solid State Relay, Output Relay 2 – N.C. & N.O. dry contacts
Dimension: 126(H) X 75(W) X 35-40(D)mm
Weight: 200g
Ingress Protection: IP-55
Card Type: 125KHz EM Card
Purchase Link: Click to HKTVmall
