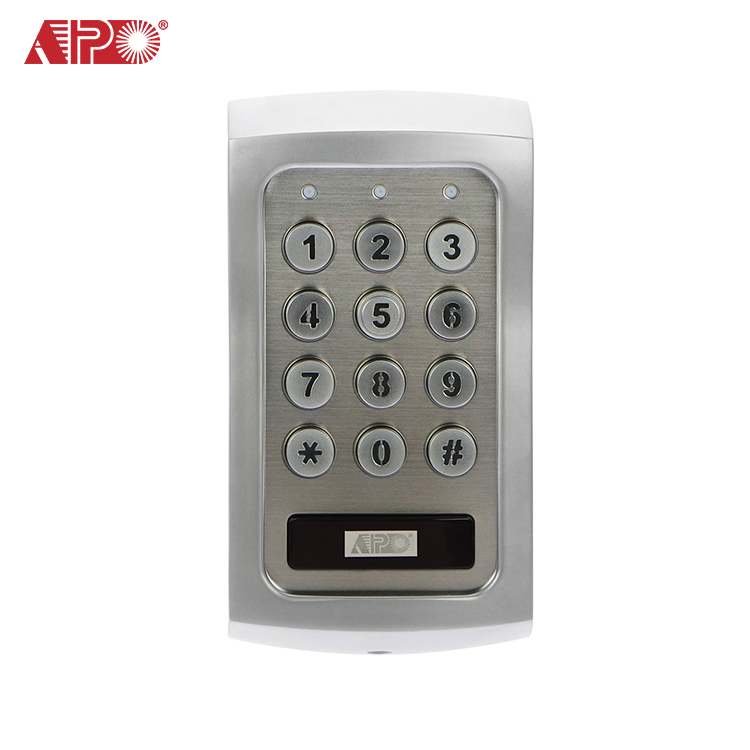

DK-2836A (P0) Keypad
DK-2836 is a self-contained two-output relay, vandal-resistant and weatherproof keypad. It combines a digital keypad and a proximity EM card reader in one unit.
The keypad is upgradable. It can become a server keypad with the Split Decoder or with the auxiliary keypad reader to become Multi-Station access control systems. If end-use would like to use the mobile phone to do control, a Wi-Fi Module is an option to upgrade as well.
The keypad is ideally suited for door strike and alarm arm-disarm controls.
Description
If more specification is needed, please contact APO directly.
This is the A version. The star button version.
Operation Voltage: 12-24VDC
Current Draw: 62-130mA@12VDC, 30-61mA@24VDC
Operation Humidity: 5-95%
Operation Temperature: -20-70C
Material: Die-Cast Zin Alloy, Stainless Steel & ABS Plastic
Outputs: Output Relay 1 – NC/NO Dry Contact, Output Relay 2 – NC/NO Dry Contact
Dimension: 144(H) x 78(W) x 29-32(D) mm
Weight: 380g
Ingress Protection: IP-65
Card Type: 125KHz EM Card
Purchase Link: Click to HKTVmall
