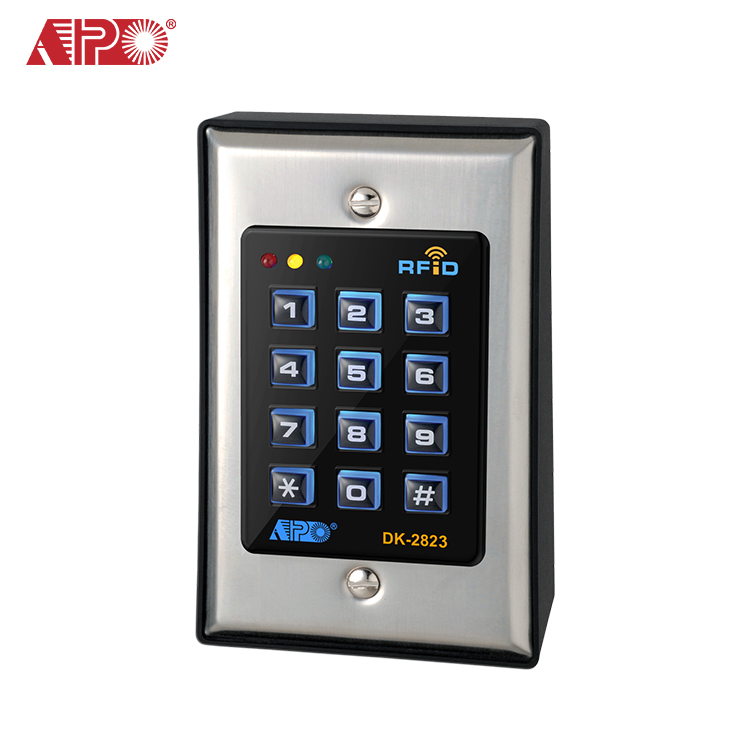

DK-2823 Keypad
DK-2823A /B is a self-contained general purpose keypad. It combines the digital keypad and proximity EM card reader in one unit.
The keypad has two output relays with N.C. and N.O. dry contacts for electric lock and auxiliary controls. It also has an NPN open collector output (the output 3) for auxiliary purpose in case three outputs are required in an application.
The keypad is upgradable. It can become a server keypad with the Split Decoder or with the auxiliary keypad reader to become Multi-Station access control systems.
Description
If more specification is needed, please contact APO directly.
A is the standard star button version.
B is the doorbell button version.
Operation Voltage: 12VDC
Current Draw: 60mA (quiescent) to 95mA
Operation Humidity: 5-95%
Operation Temperature: -20-70 °C
Material: ABS Plastic
Outputs:
Output Relay 1 – N.C. & N.O. dry contacts, 5A/24VDC Max.
Output Relay 2 – N.C. & N.O. dry contacts, 1A/24VDC Max.
Output Relay 2 – N.C. & N.O.
Dimension: 117(H) X 74(W) X 48(D)mm
Weight: 200g
Card Type: 125KHz EM Card
