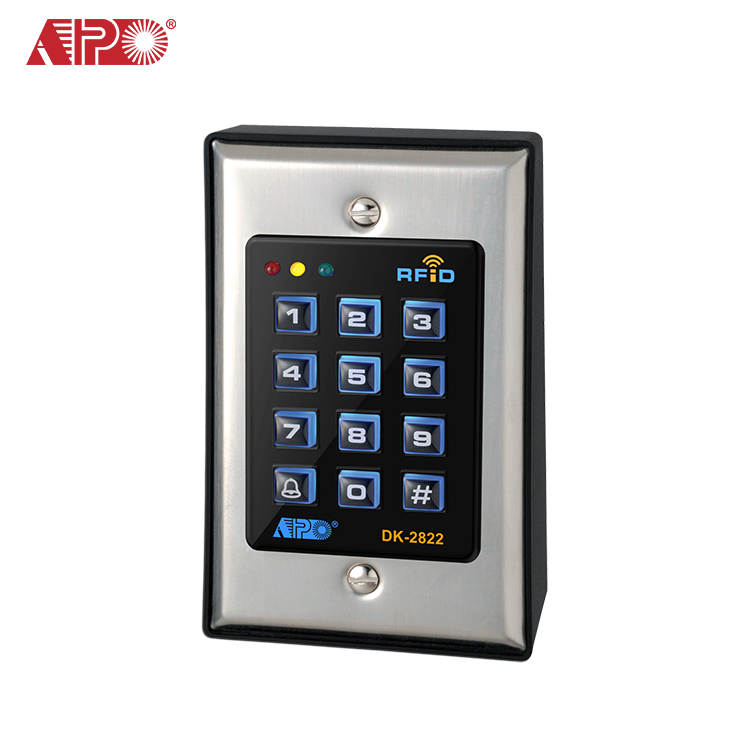

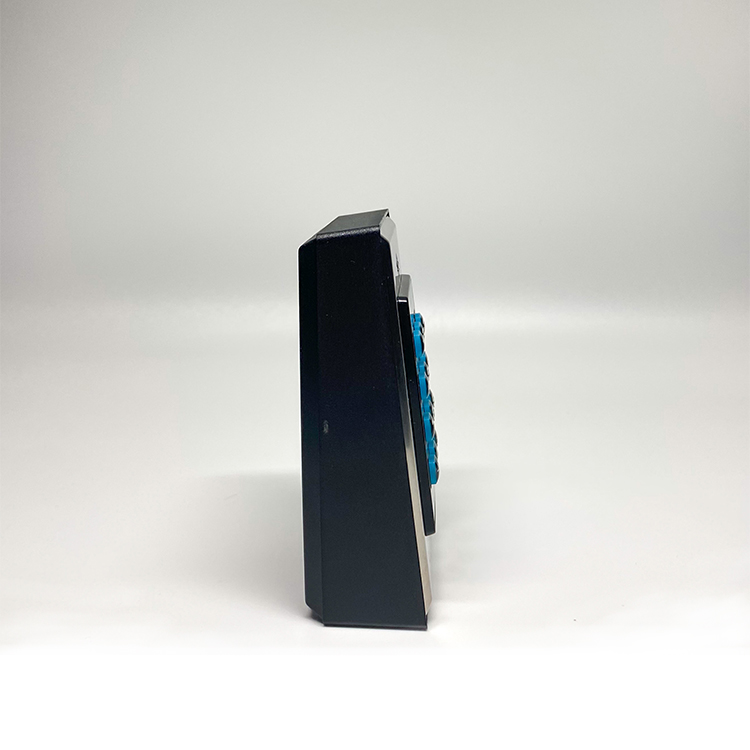

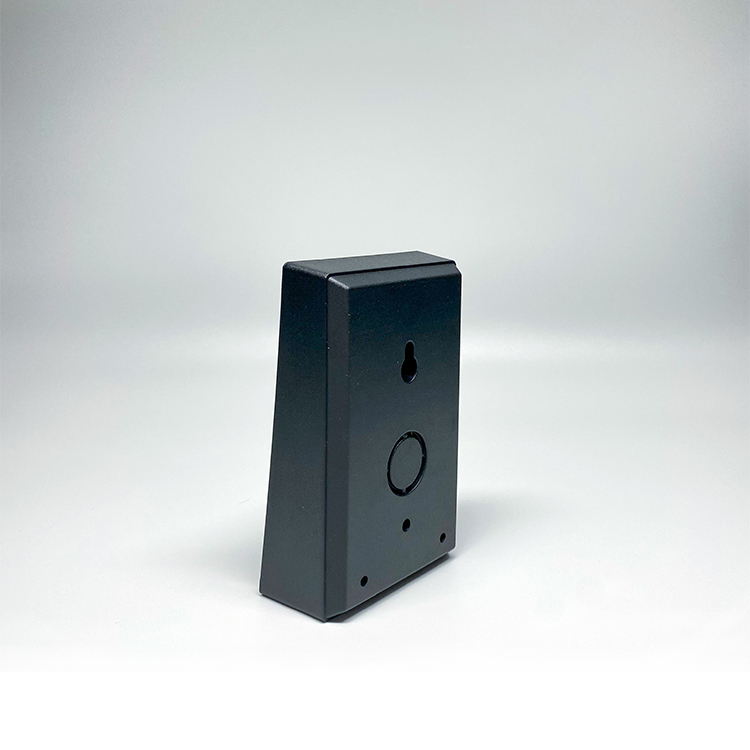

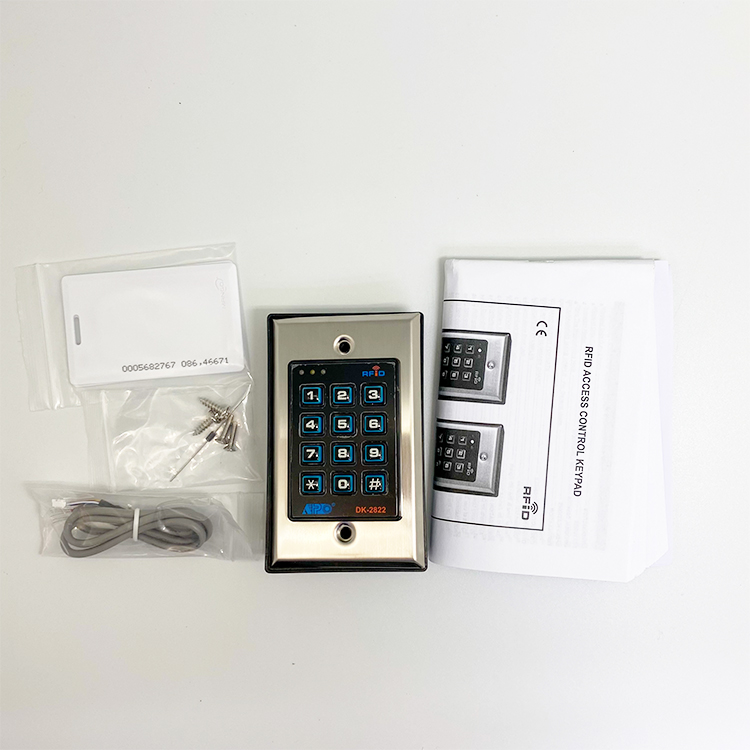

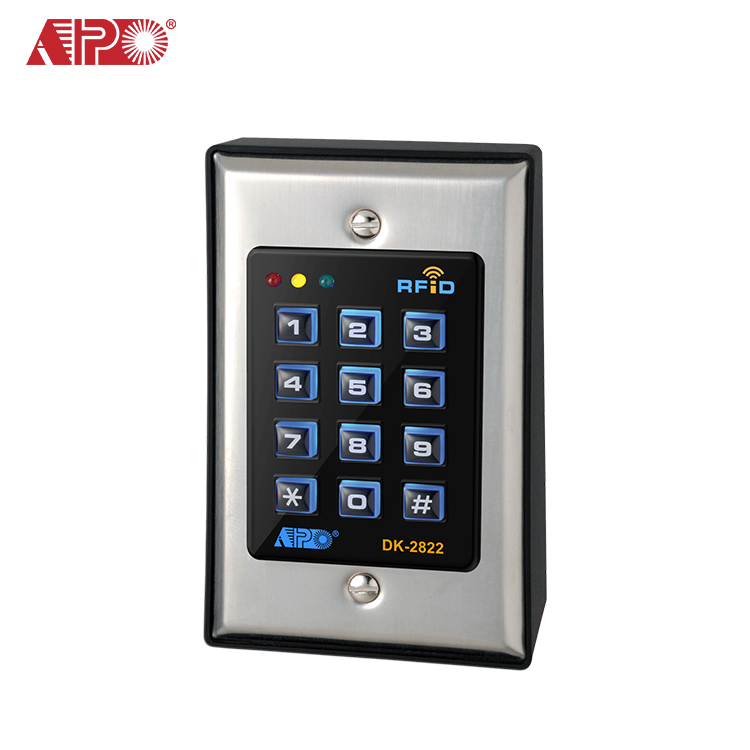

DK-2822 Keypad
DK-2822 is a self-contained full feature digital access control keypad that combines proximity EM card reader in one unit. It can be ush mount on a single gang box or surface mount on its plastic mounting box.
The keypad is upgradable. It can become a server keypad with the Split Decoder or with the auxiliary keypad reader to become Multi-Station access control systems.
The keypad is ideally suited for door strike and alarm arm-disarm controls.
Description
If more specification is needed, please contact APO directly.
A is the standard star button version.
B is the doorbell button version.
Operation Voltage: 12VDC
Current Draw: 60mA (quiescent) to 95mA
Operation Humidity: 5-95%
Operation Temperature: -20-70 °C
Material: ABS Plastic
Outputs: Output Relay 1 – Solid State Relay
Output Relay 2 – N.C. & N.O.
Dimension: 117(H) X 74(W) X 48(D)mm
Weight: 200g
Card Type: 125KHz EM Card
DK-2822A Purchase Link: Click to HKTVmall
DK-2822B Purchase Link: Click to HKTVmall
