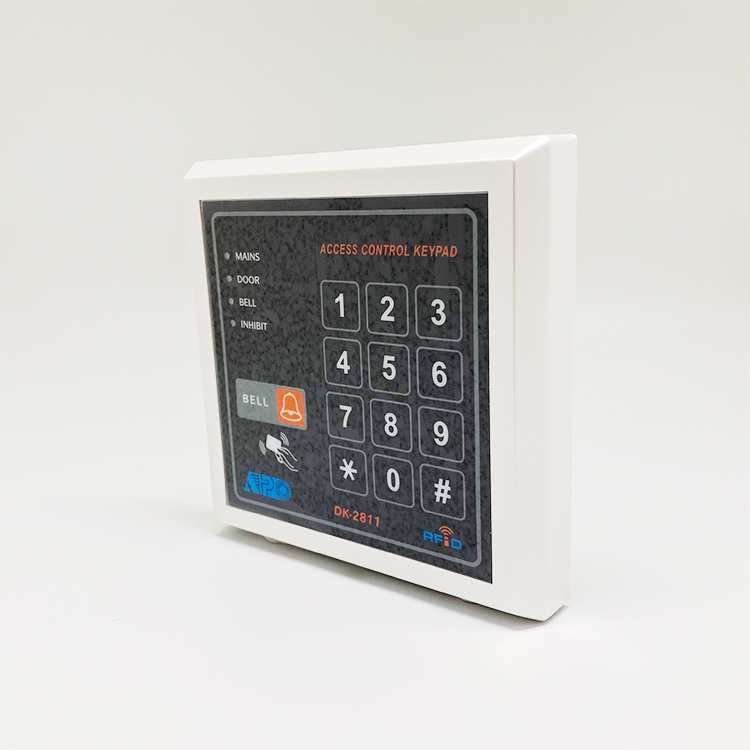

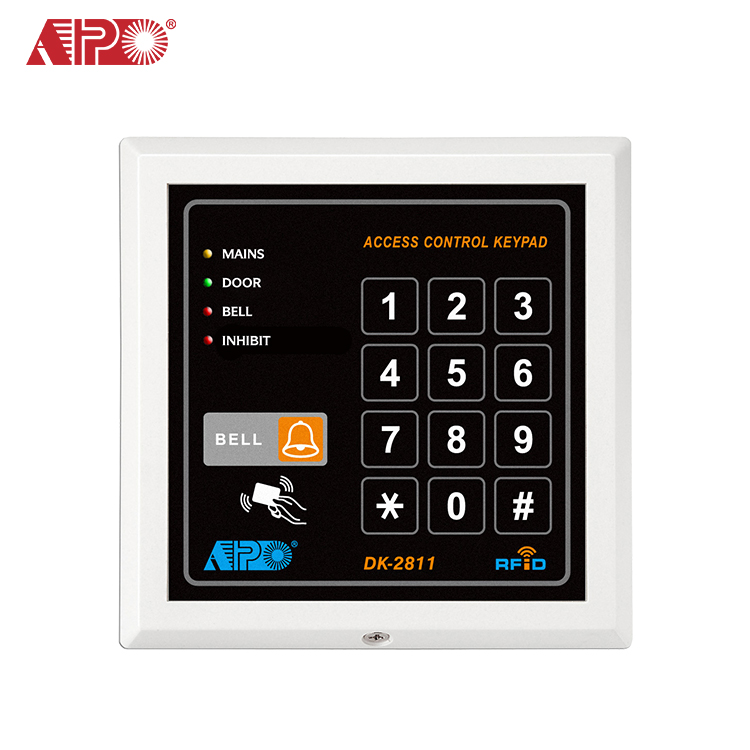

DK-2811 Keypad
DK-2811 is a self-contained single output relay keypad. It combines a digital keypad and a proximity EM card reader in one unit.
The keypad is upgradable. It can become a server keypad with the Split Decoder or with the auxiliary keypad reader to become Multi-Station access control systems.
The keypad is ideally suited for door strike and alarm arm-disarm controls.
Description
If more specification is needed, please contact APO directly.
Operation Voltage: 12VDC
Current Draw: 75-100mA
Operation Humidity: 5-95%
Operation Temperature: -20-70C
Material: ABS Plastic
Outputs: Output Relay 1 – Solid State Relay
Dimension: 117(H) x 117(W) x 24(D) mm
Weight: 180g
Ingress Protection: Indoor Use
Card Type: 125KHz EM Card
Purchase Link: Click to HKTVmall
