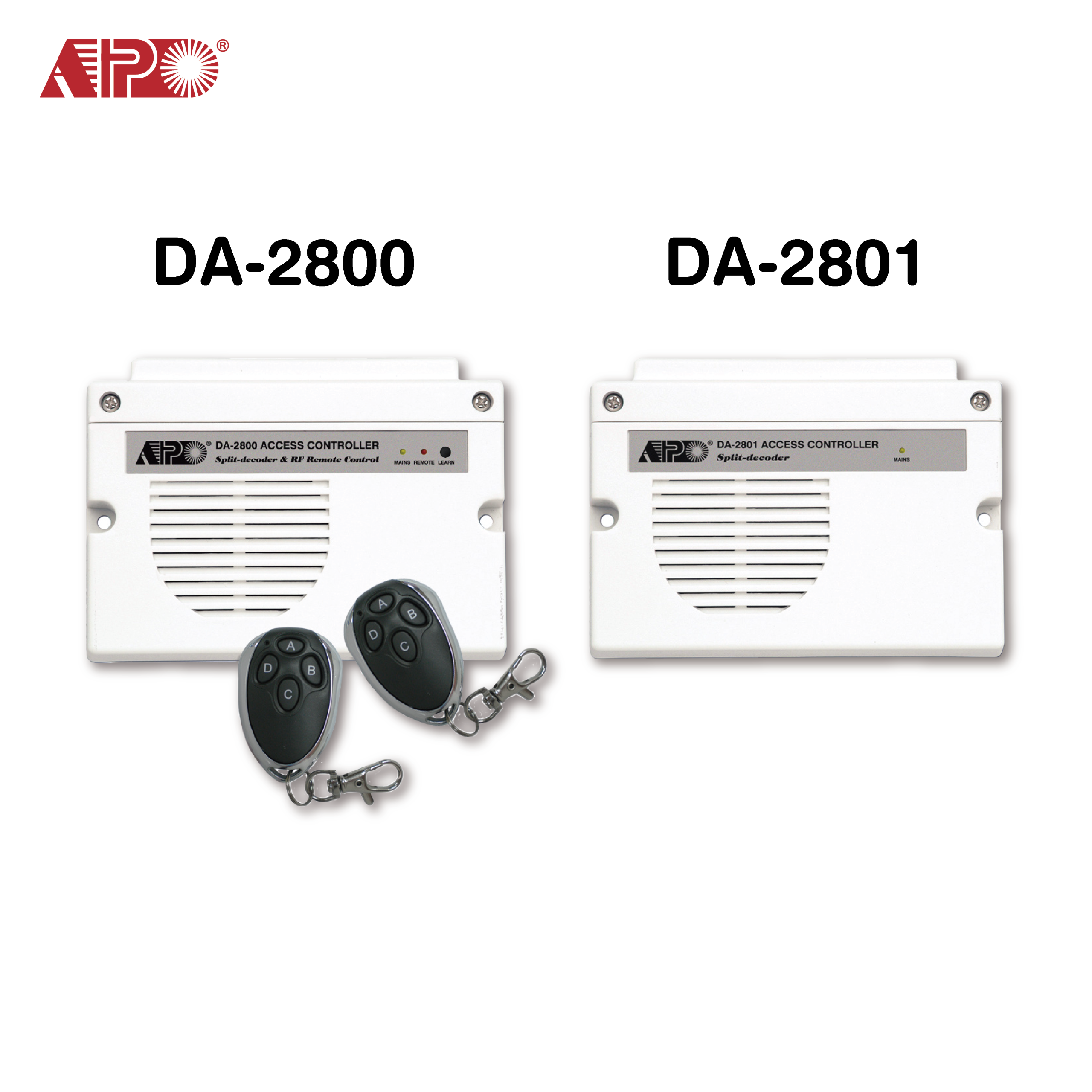

DA-2800 & DA-2801 Split-Decoders
DA-2800 and DA-2801 are full feature self-contained split-decoders. They are specially designed to work with the keypads in DK-2800 MK-II series and up-grade them for split-decoded operation.
Any keypad of DK-2800 MK-II can be up-graded to full feature operation once it is linked up with the split-decoder even it is originally a low cost, most basic keypad.
The DK-2800 MK-II keypad changes its role as a server in split-decoded operation. It also serves the auxiliary keypads and readers in the system.
DA-2800 and DA-2801 work in the voltage range of 12-24VDC. They are compatible with all the keypads of 12VDC and 12-24VDC in the DK-2800 MK-II series.
Two full feature split-decoders are available. They are DA-2800 and DA-2801
• DA-2800 – Full Feature Split-Decoder with RF Remote Control
• DA-2801 – Full Feature Split-Decoder
DA-2800 is supplied with two remote control keyfobs. Its receiver is also compatible with the optional wireless keypad DK-2310.
Description
If more specification is needed, please contact APO directly.
FULL FEATURE SPLIT-DECODERS FOR DK-2800 MK-II TRI-TECH KEYPADS

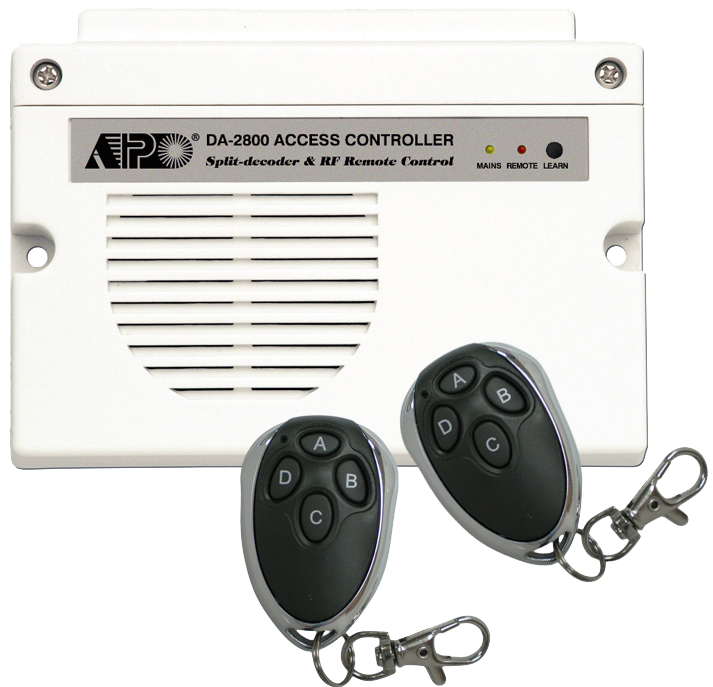

DA-2800 – Full Feature Split-Decoder with RF Remote Control
Purchase Link: Click to HKTVmall

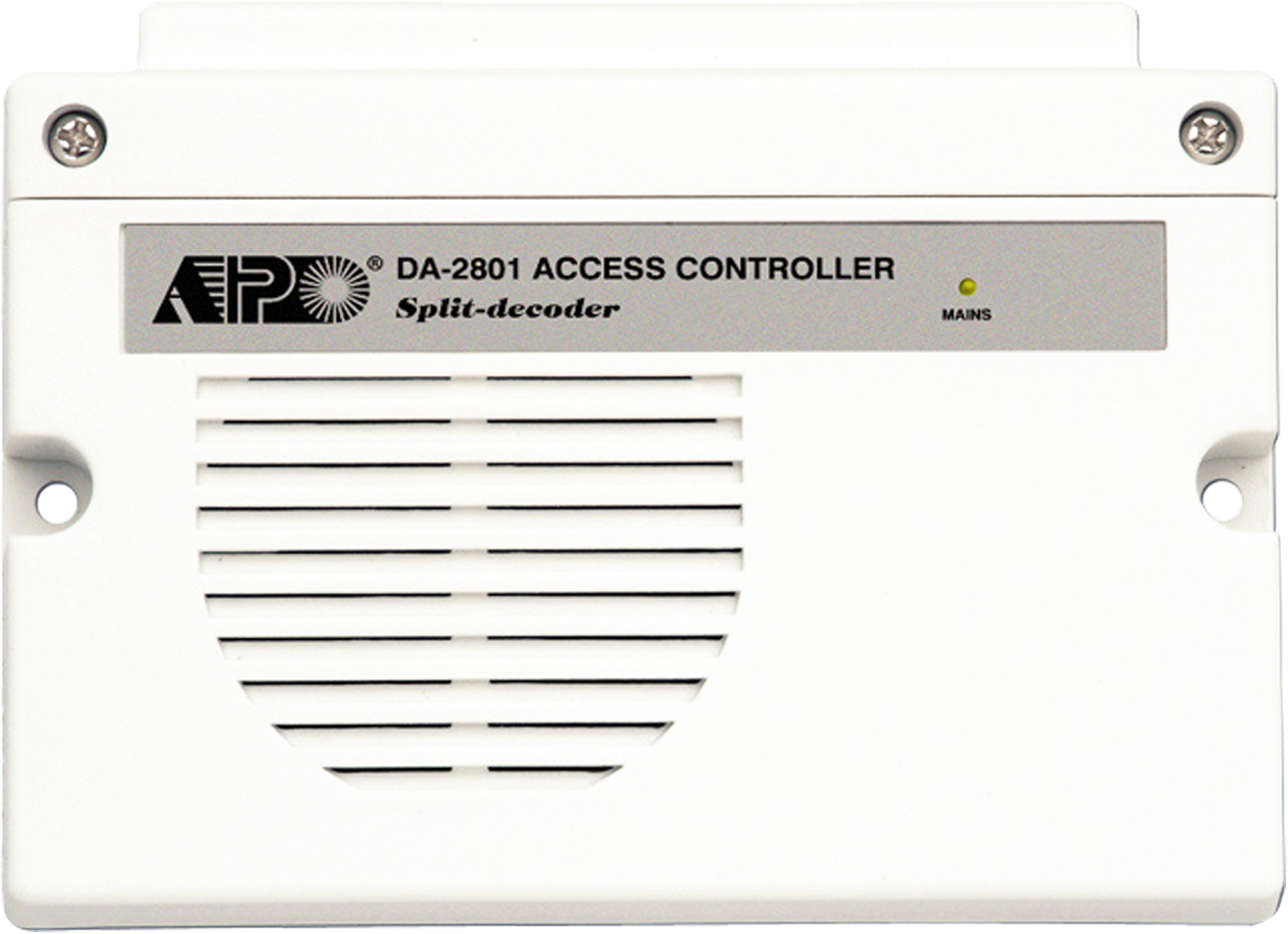

DA-2801 – Full Feature Split-Decoder
Operation Voltage: 12-24V DC, Auto Adjusting
Operating Current: 65mA (Quiescent); 100mA (Three Output Relay Active)
Housing Dimensions: 32.5(H) X 120(W) X 87(D) mm (ABS Plastic Box)
Input Sensing Terminals:
a) Door Position (Normally Close)
b) Egress Button (Normally Open)
c) O/P 1 Inhibit (Normally Open)
d) Door Bell (Normally Open)
e) Tamper Switch (Normally Close)
Weight: 250g Net
• For DA-2800 Only – Wireless Remote Control
• 24-bit Self-learning Codes (over 1 million) Receiver for RF Remote Keys
• Accepts Up To 40 Maximum RF Remote Control Keyfobs or Wireless Keypads
• Compatible with DK-2310 Wireless Keypad
• Remote Control Key Controls Output 1, 2, 3 & Actuates Door Chime
• Dimensions (DA-12 Keyfob): 55(H) X 38(W) X 12(D)mm
• Operation Frequency: 433Mhz
• Receiver Type: Super-heterodyne Receiver for 24-bit Self-learning Codes (over 1 million Combinations)
• Number of Remote Control Devices: 40 Remote Control Keyfobs (DA-12) or Optional Wireless Keypad (DK-2310)
