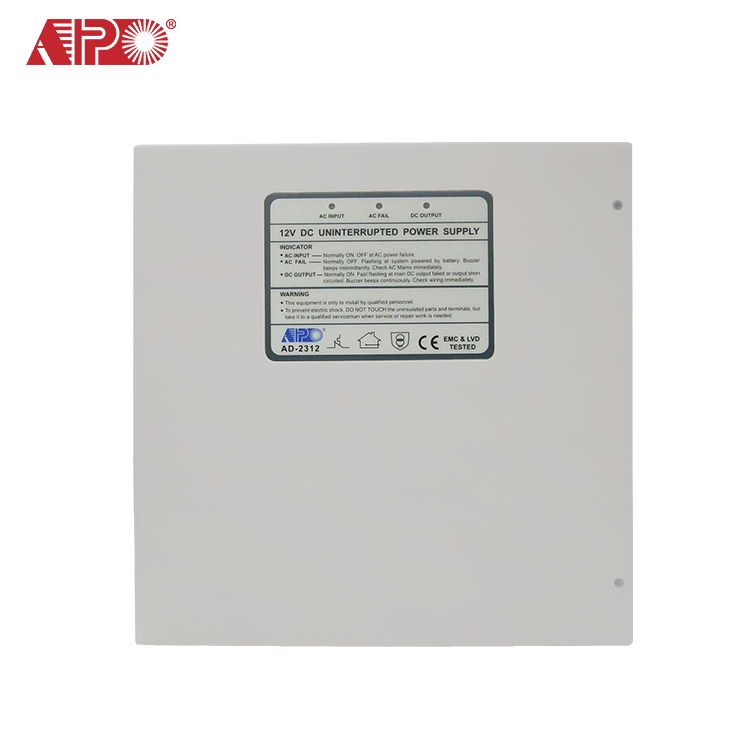

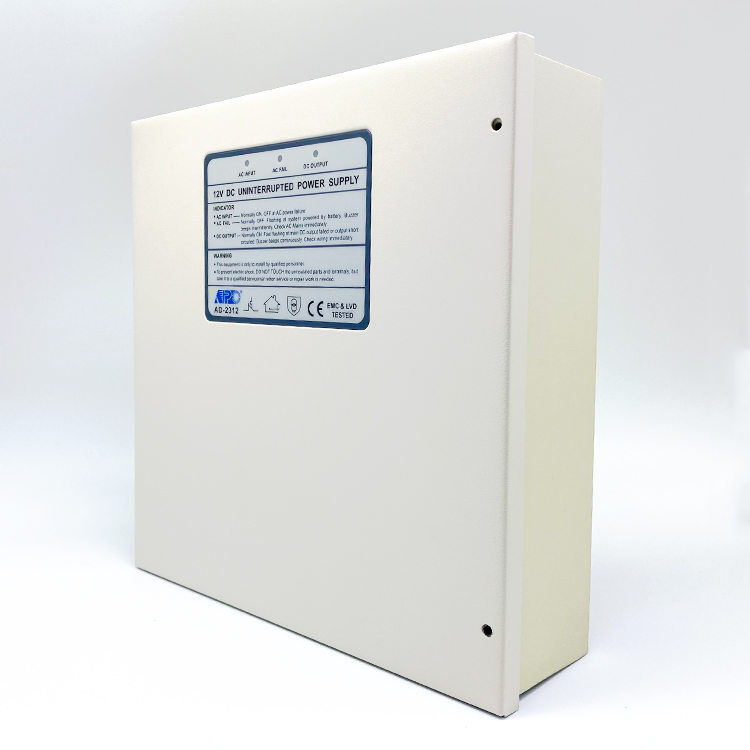

AD-2312 Power Supply
The AD-2312 are full feature multi-purpose power supplies designed for powering electric lock and keypads in access control systems. They are also ideal power packs for alarm and surveillance systems that required back-up power.
The AD-2312 are built-in with split-decoder that is compatible with all the DK-2800 series keypads for split-decoded operation to up-grade the keypads’ security level in preventing sabotage. The AD-2322 also offers RF remote control operation.
Description
If more specification is needed, please contact APO directly.
Full Feature Dual Output Power Supply
Built-in Split-decoder Compatible with DK-2800 Keypads
Input Voltage: 220-240VAC 50Hz
Output Power: 13.7VDC/0.5A Regulated – For Keypads
12VDC/3A Un-regulated – For Electric Lock
Back-up Battery: 12V/7.0Ah (not included), Built-in Charger
Approvals: CE-EMC, CE-LVD & CE-R&TTE Compliance
Solid State Output for Fail-safe or Fail-secure Electric Lock
Operation Modes: Stand-alone or Split-decoded Built-in Door Chime
Dimensions: 272(H) X 165(W) X 80(D) mm
Weight: 3.2 kg
